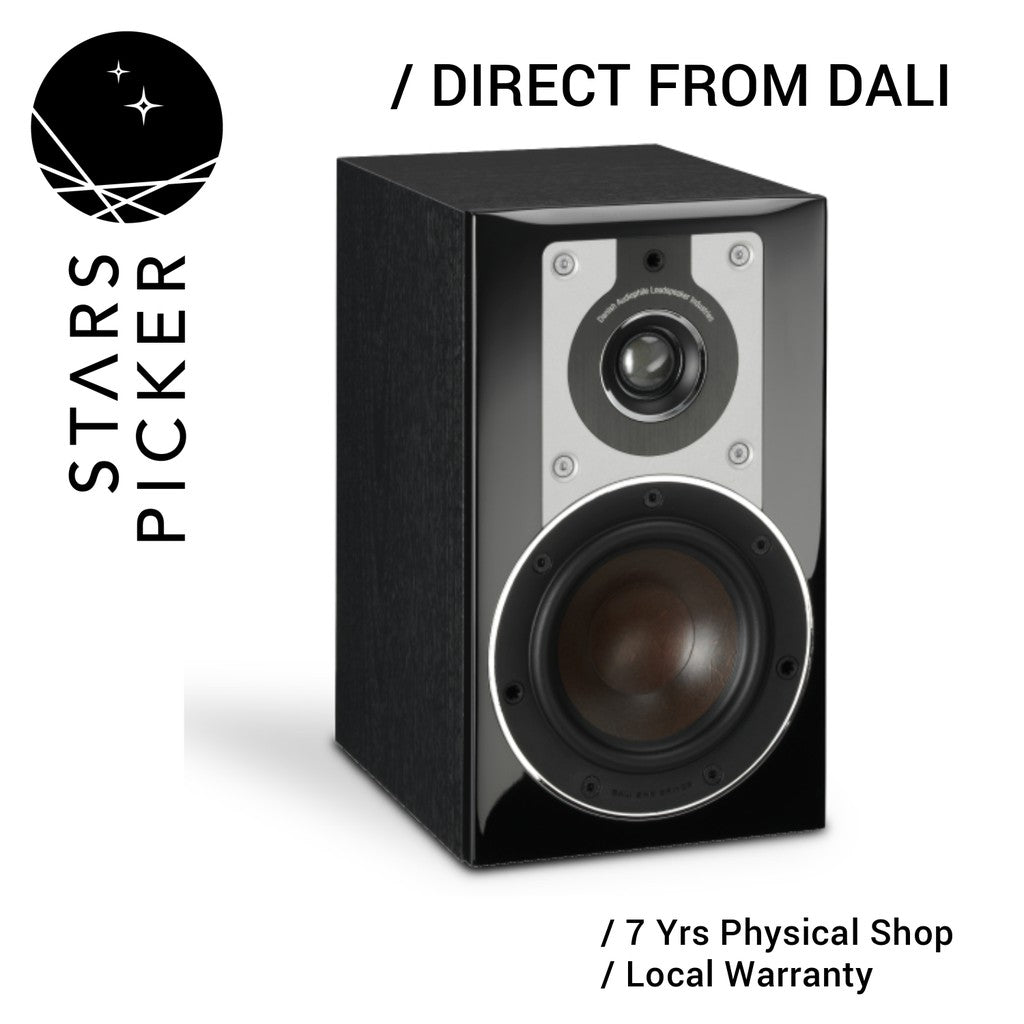

Dali Opticon 1

The DALI OPTICON 1 is a compact stand mount loudspeaker, designed to be placed close to the wall or mounted on it. It combines its almost 5 litres of air capacity with a rear-mounted bass port, a 4 ¾ inch low-loss Wood Fibre Woofer, a 26 mm ultra-light Soft Dome Tweeter and gold-plated terminals and what the DALI OPTICON 1 delivers is the perfect balance of clear, detailed midrange and an impressive tight bass that belies its size.

Legacy
The OPTICON 1 features the same low-loss Wood Fibre Woofer found in our flagship EPICON series, alongside our unique SMC (Soft Magnetic Compound) magnet motor system and a brand new Soft Dome Tweeter developed for the OPTICON series, all of which works together along with a individual bass reflex port for the woofer to produce audio exactly as the recording artist originally envisioned it.

Key Features

Proprietary DALI tweeters and woofers
Hand-assembled with in-house built cabinet construction
Unique SMC-based magnet motor system
Low-loss Wood Fibre Woofers
Ultra-light 26 mm Soft Dome Tweeter
Gold-plated Terminals
Available in White Matt Satin, Black and Walnut

SPECS
Product series OPTICON
Frequency Range (+/-3 dB) [Hz] 62 - 26,500
Sensitivity (2,83 V/1 m) [dB] 86.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 105
Recommended Amplifier Power [W] 25 - 100
Crossover Frequency [Hz] 2,000
Crossover Principle 2-way
High frequency driver, Quantity 1 x 26 mm
High frequency driver, Diaphragm type Soft Textile Dome
Midrange driver, Quantity 1 x 4 3/4"
Midrange driver, Diaphragm type Wood Fibre Cone
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 61.5
Connection Input Single Wire
Magnetic Shielding No
Recommended Placement On-Wall
Shelf or stand
Recommended Distance From Wall [cm] 2 - 80
Dimensions With Base (HxWxD) [mm] 261 x 152 x 231
Accessories Included Manual
Rubber Bumpers
Wall Bracket
Weight [kg] 4.5
