Fosi Audio ZD3 Fully Balanced Desktop DAC/ Pre Amp
*High-Performance ES9039Q2M Chip
*XLR Output / Trigger In/Out
*Op-Amp Rolling: SS3602, MUSES02, OPA2134PA
*Perfect Match to ZA3 Amp

In the same series and form factor, the ZD3 provides seamless integration with the ZA3, unlocking audio details and clarity.

Description

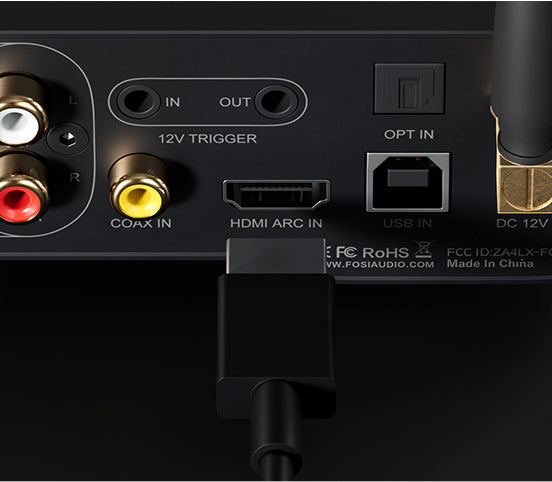

Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound.

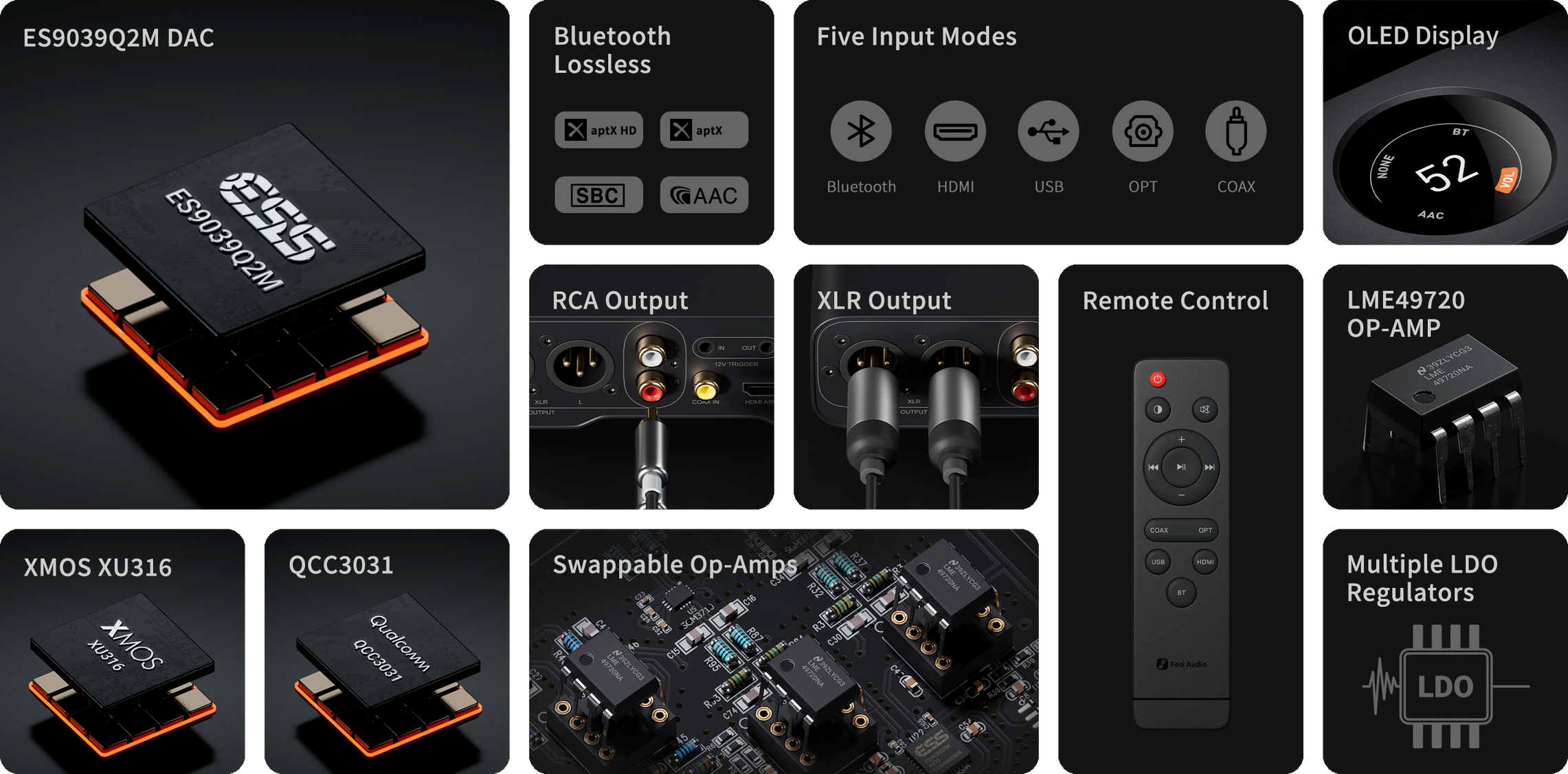

Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

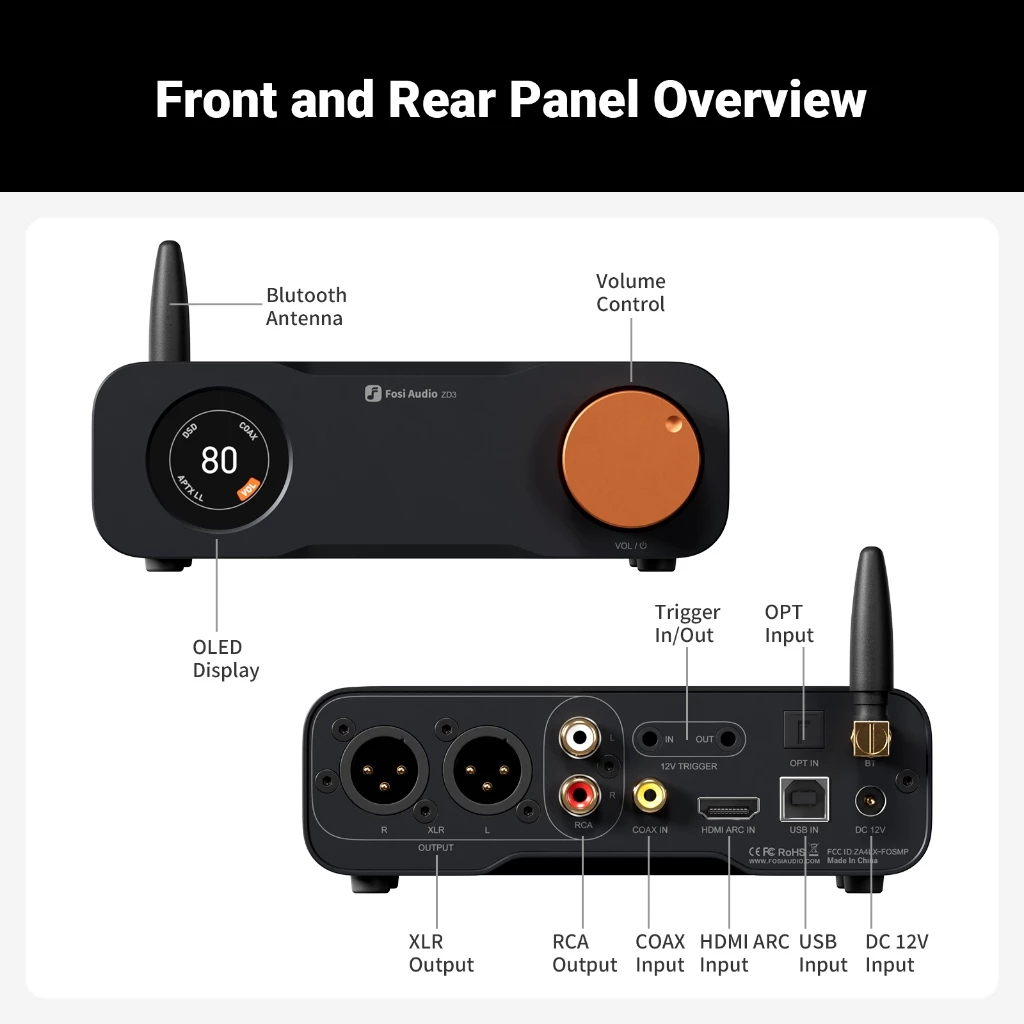

Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios

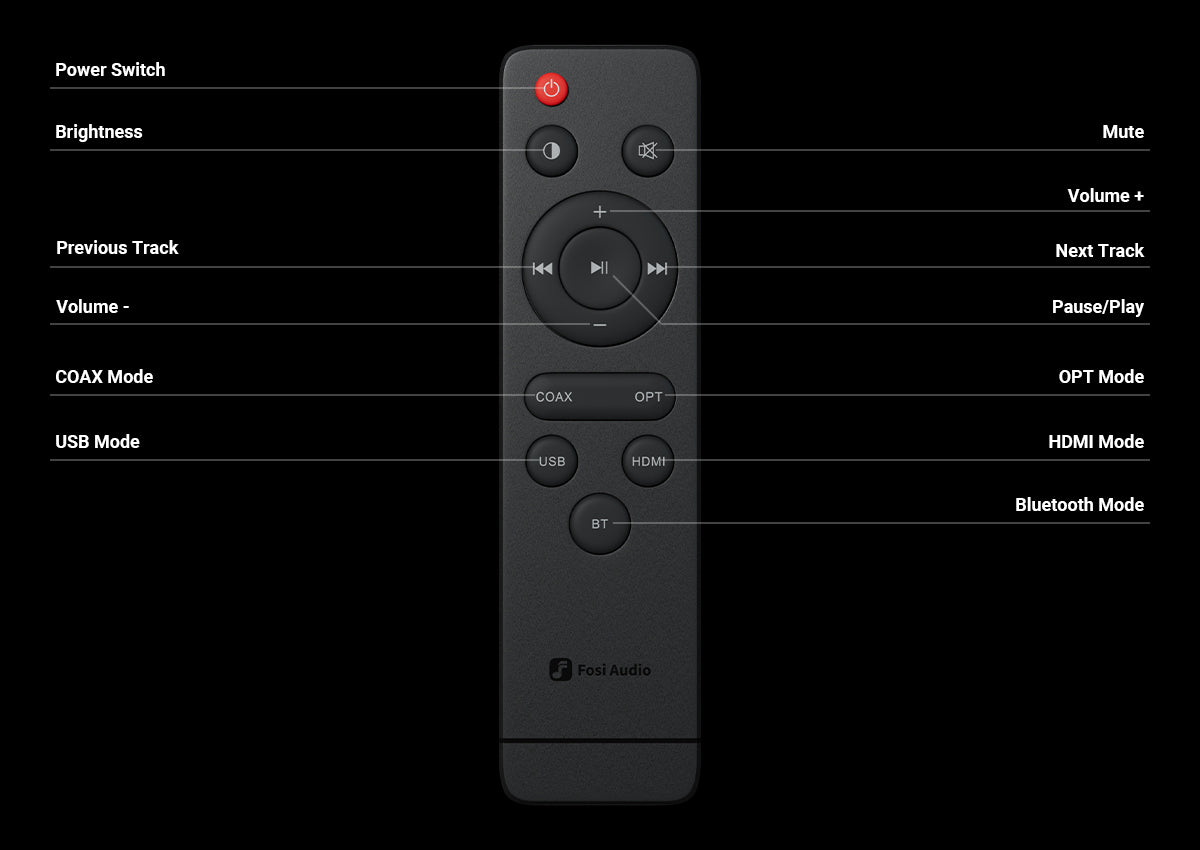

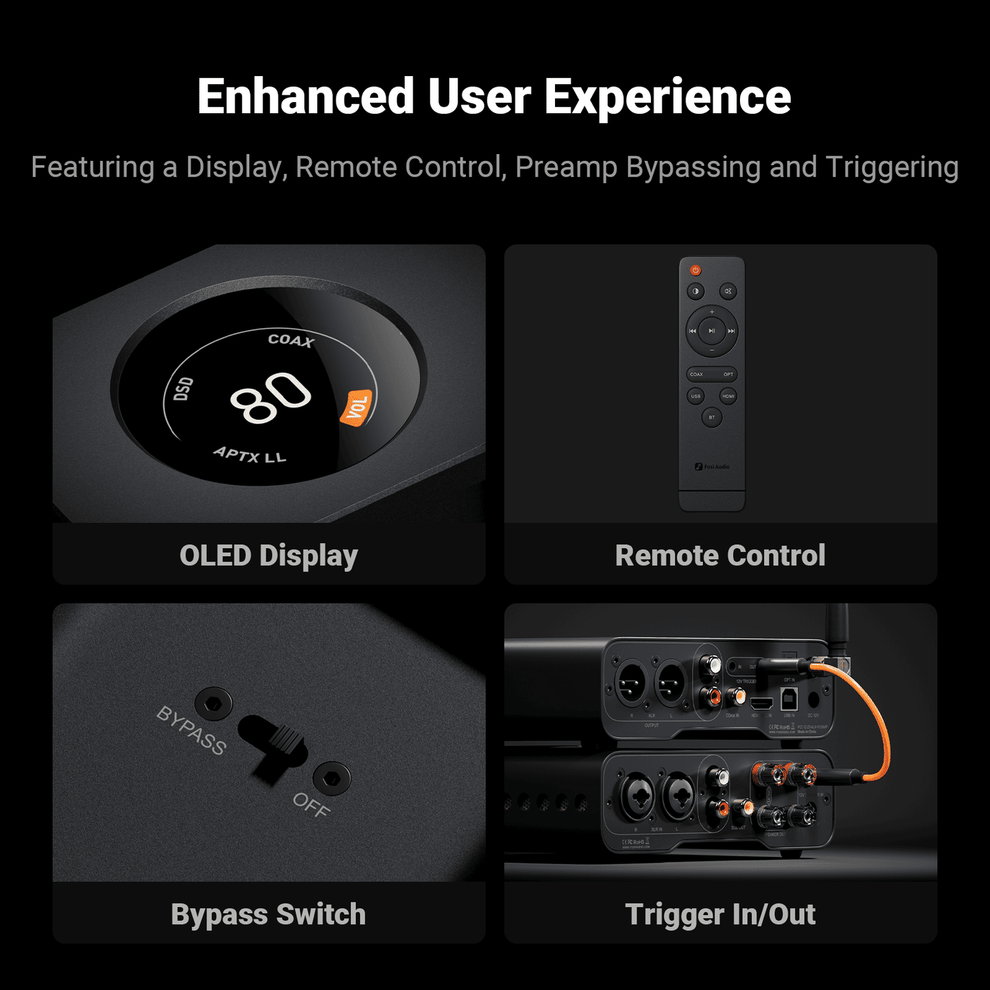

Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

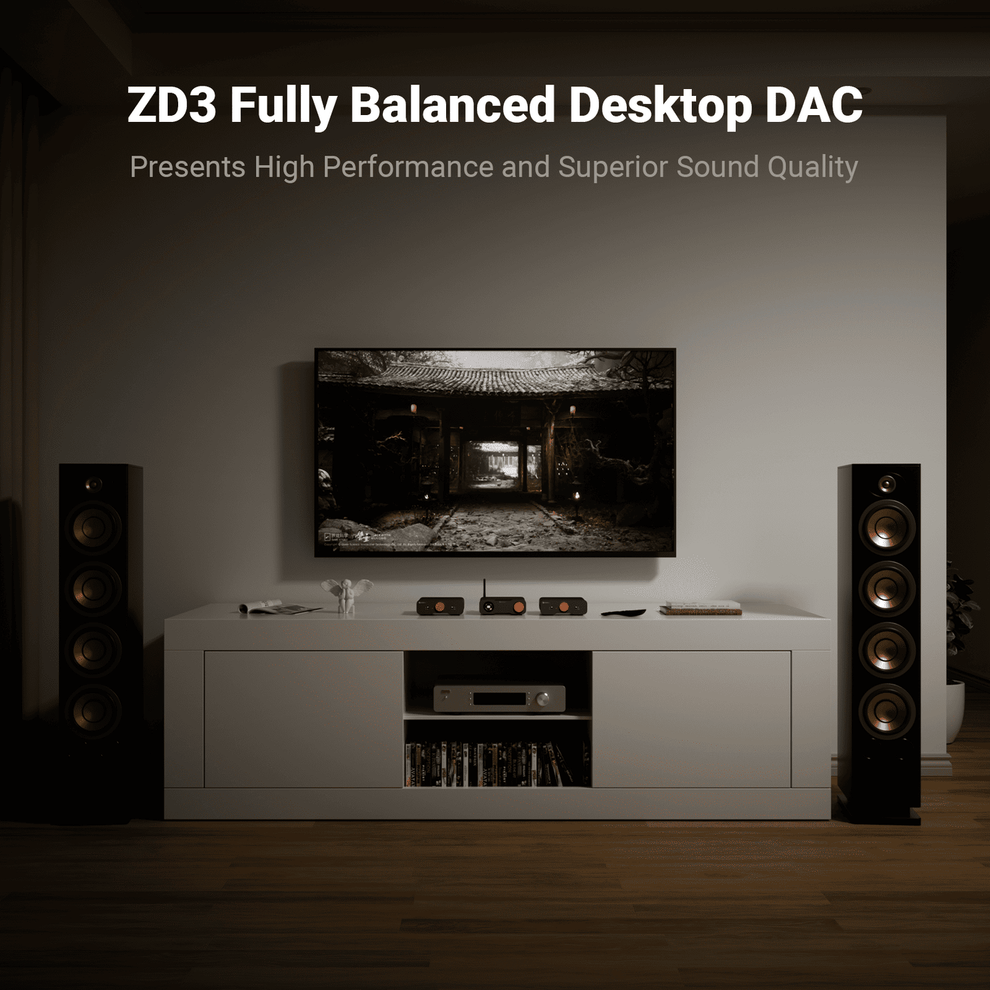

Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

Chipset: XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720

Maximum Sampling Rate
USB: PCM 32bit/768kHz; DSD512
OPT/COAX: PCM 24bit/192kHz
Bluetooth: PCM 24bit/48kHz

Output Level
XLR：5Vrms
RCA:  2.5Vrms

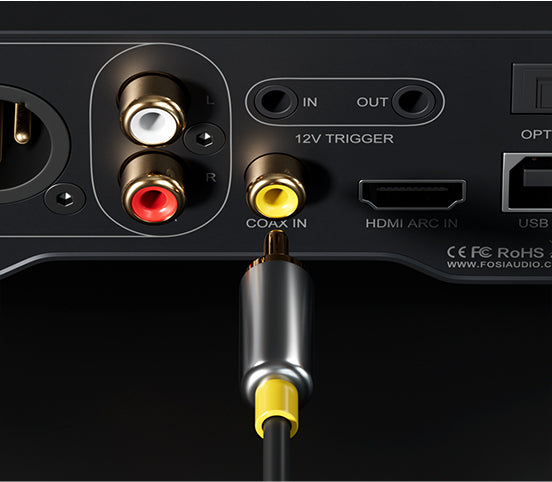

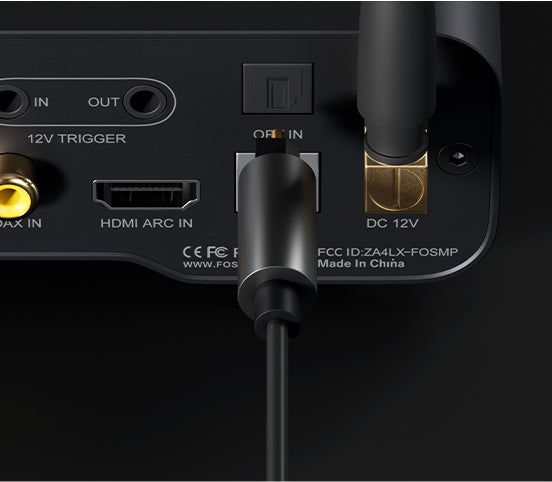

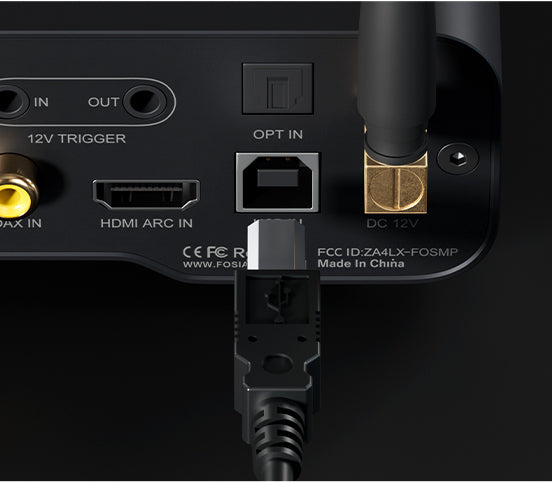

Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth

Output: XLR, RCA

SNR: 126dB

SINAD: ≥120dB

THD+N: <0.00008%

Dynamic Range: ≥123dB

Noise Floor: ≤2μV

Bluetooth Version: 5.0

Bluetooth Connection Distance: ≥13m

Bluetooth Transmission Audio Format: aptX HD, aptX, AAC, SBC

Power Supply: DC 12V 1.5A with UK Power Cable
