Key Features

DirectDigital?? amplification, combining all preamplification and power amplification functions into a single amplifying stage

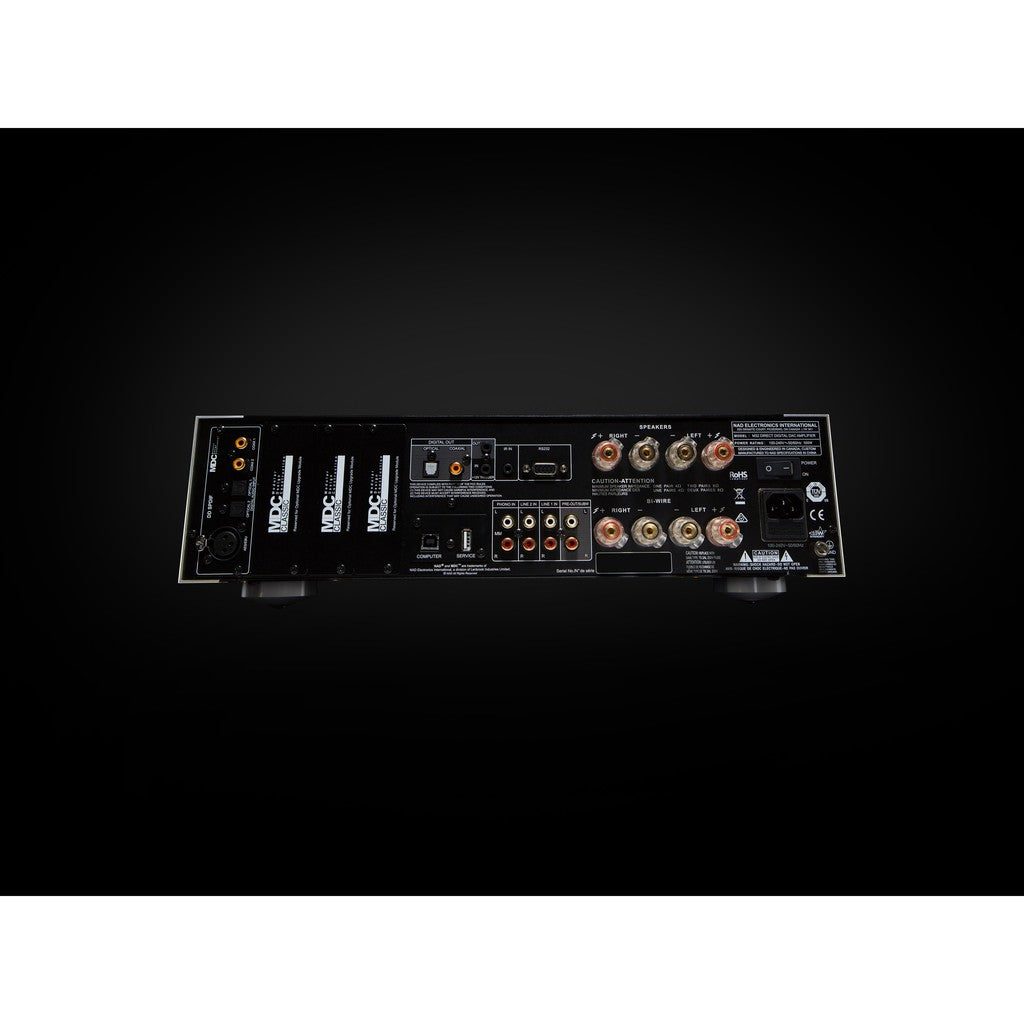

Four MDC slots with three for customization and expandability, all are 24/192 capable

AES/EBU, Coax and Optical, USB A and USB B

MM Phono Input

Single-ended Line Inputs

Asynchronous USB 2.0 (24/192) Computer Input

AES/EBU, Coax, and Optical 924/192 Inputs

Subwoofer Crossover with selectable Crossover Frequency and Levels

Crossover Frequency and Levels

Headphone Amplifier

Two sets of Speaker Outputs for Bi-wiring

Remote Control HTRM-2

General Specifications

Line In, Speaker Out

Continuous Output Power into 8 Ohm and 4 Ohm
180W (ref. 20Hz-20kHz at rated THD, both channels driven)

THD (20Hz-20kHz)
0.005% (250mW to 180W, 8 Ohm and 4 Ohm)

Signal/Noise Ratio
>92dB (A-weighted, 500mV input, ref. 1W out in 8 Ohms)

Clipping Power
>195W (at1kHz, 0.1% THD)

IHF Dynamic Power

8 Ohm
220W

4 Ohm
360W

2 Ohm
400W

Peak Output Current
>30A (in 1 Ohm, 1ms)

Damping Factor
>160 (ref. 8 Ohms, 20Hz-6.5kHz)

Frequency Response
??0.3dB (ref. 20Hz-96kHz at 192kHz)

Bit Rate/Sample Rate
up to 24 bit/192kHz

Preamplifier Specifications

Line Input, Pre Out

Input Impedance (R and C)
10 kilohms + 100pF

Maximum Input Signal
>4Vrms (ref. 0.1% THD)

Output Impedance
240 Ohms

Input Sensitivity
146mV (ref. 500mV out, Volume Maximum)

Maximum Voltage Output ??IHF load
>2V (ref. 0.1% THD)

Tone Controls
Treble: ??10dB at 20kHz
Bass: ??10dB at 60Hz
Balance: -10dB

Phono Input, Pre Out

Input Sensitivity
2.38mV (ref. 400mV out, Volume Maximum)

Maximum Input Signal 1 1kHz
>66mV rms (ref. 0.1% THD)

Line Input, Headphone Out

Output Impedance
0.5 Ohm

Power Consumption

at Auto Standby ON
0.5 Watts*

OFF mode (Power switched OFF)
0.4 Watts

* ??After 15 minutes of no user interface interaction and no active source input

Weights & Dimensions

Dimensions
435 x 133 x 396mm

(17 1/8 x 5 1/4 x 15 5/8??

Net Weight
9.8kg

(21.6lb)

Shipping Weight
18.5kg

(40.8lb)
