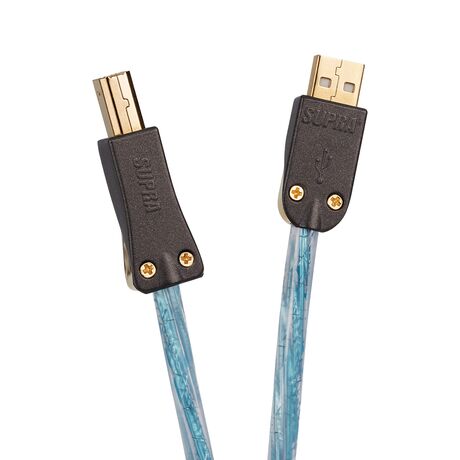

SUPRA USB 2.0 EXCALIBUR A-B
We have for a couple of years been developing an ultimate USB Cable, the result was USB Excalibur. Our goal was simple, to make the world’s best USB cable, with no compromises or shortcuts. Excalibur is a premium high speed cable with improved data and power transmission, a complement to the existing USB series. Both the data pair and the power pair are optimized for their purpose, transmit data and power.

The twisted data pair is made of PE isolated silver plated oxygen free copper wires. The silver layer is very thick, 3.8% of the total wire, for best conductivity and high velocity factor. Silver is great for high frequencies and high speed data transmission.

The construction of the power conductors are totally different compared to the data pair. To avoid power losses and to maximize the wire area we used 4 tin plated wires in a star quad configuration. Star quad design and the separate screen reduces any RFI greatly .

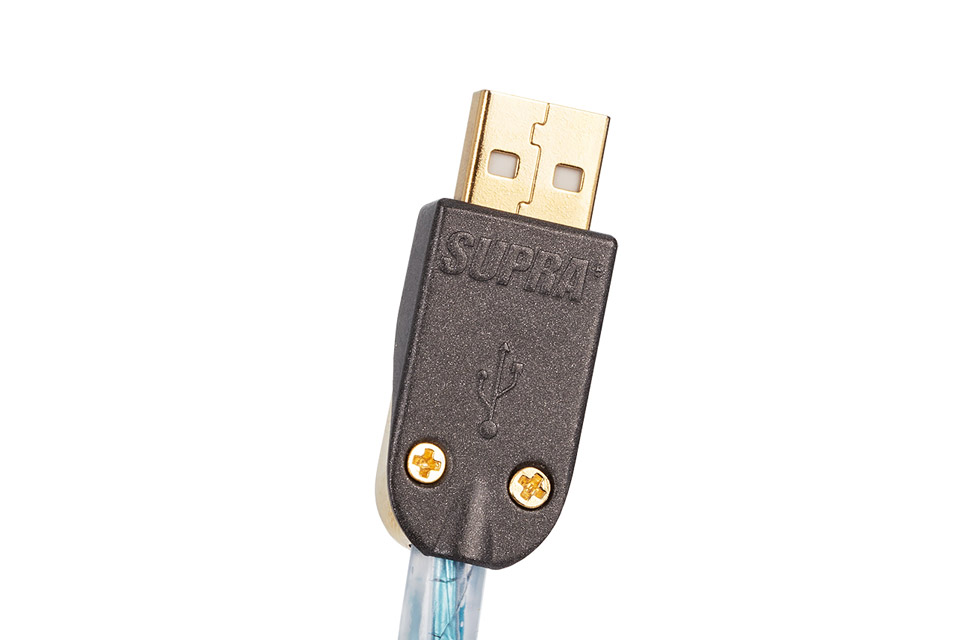

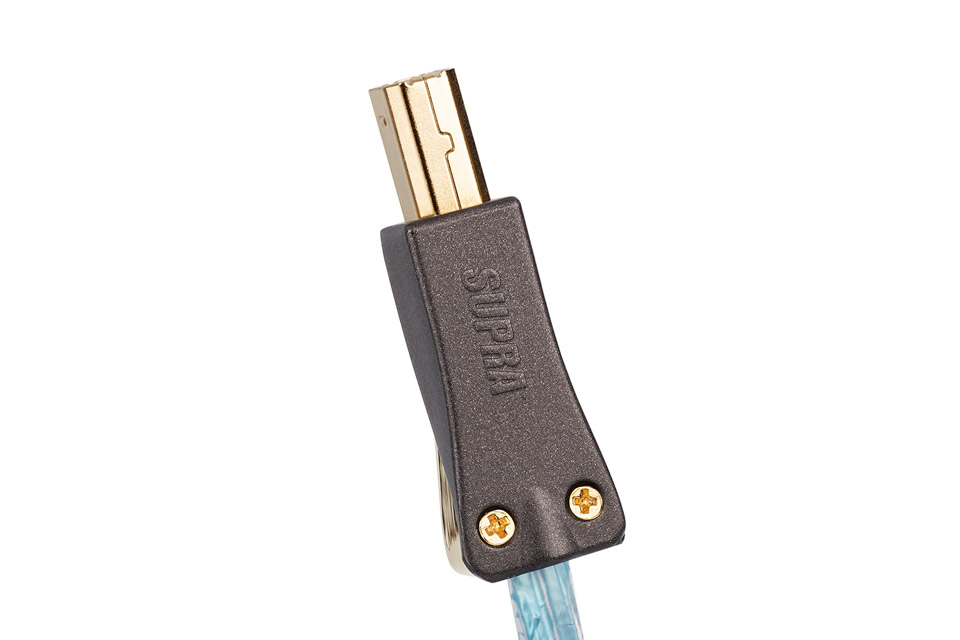

You probably recognize the design of the plugs, the USB plugs are offspring’s of our popular HDMI plug. Fully shielded in Aluminum. The plugs are detachable to make it possible to route the cable in 16 millimeters conduits including the contact. No more on-site cut-offs and re-soldering, jeopardizing the typical Supra top notch performance.

Technical Info:

• Mechanical Specifications
• Standard: USB 2.0 Hi-Speed
• Connectors: USB A male ► USB B male
• Signal Direction: Bi-directional
• Application Examples: Computer peripherals, DAC’s
• Data transfer rate: 480 Mbit/s
• Solder Tin: Almit SR-34 Super
• Cable strain relief: Cable Clamp
• Electrical properties
• Number of pairs: 2 pieces
• Lead area Power: 4 x 0.24 / 23 Star Quad mm2 / AWG
• Lead area Data: 2 x 0.24 / 23 Twisted mm2 / AWG
• Number of strands: 19 pieces
• Strand dimension: Ø 0.127 mm
• Lead material power: Tin plated oxygen-free 5N copper
• Lead material data: Silver plated oxygen-free 5N copper
• Insulation: Low capacitance PE
• Shielding: Aluminized PET foil
• Jacket: Heat and age resistant PVC
• Flame retardant: No
• External dimension: Ø 7.3 mm
• Electrical performance
• Data transfer rate: 480 Mbit / s
• Impedance: 90 Ohm
• Velocity factor: 0.66x C (speed of light)
