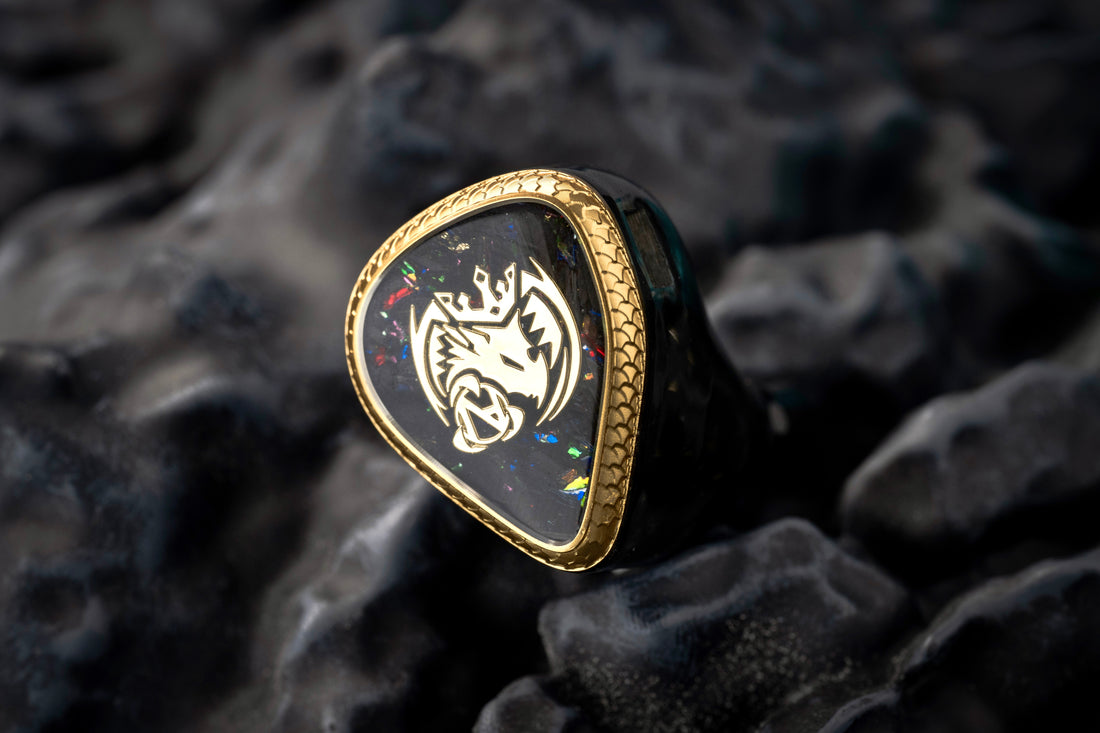

The Pendragon showcases a Western dragon-inspired design, featuring a dragon scale pattern crafted with advanced 3D printing and CNC-machined carbon fiber panels accented with metallic fragments for a noble aesthetic.

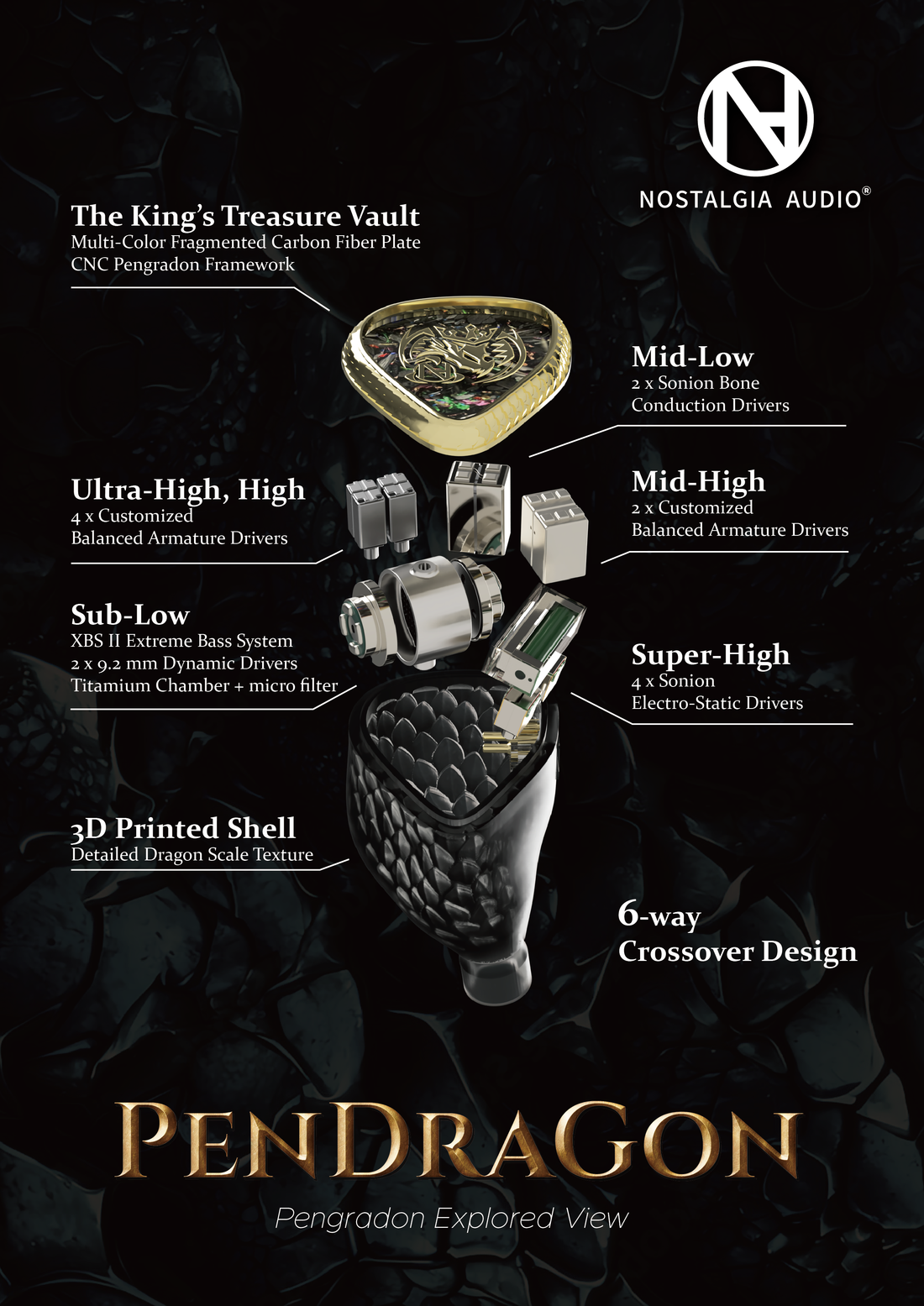

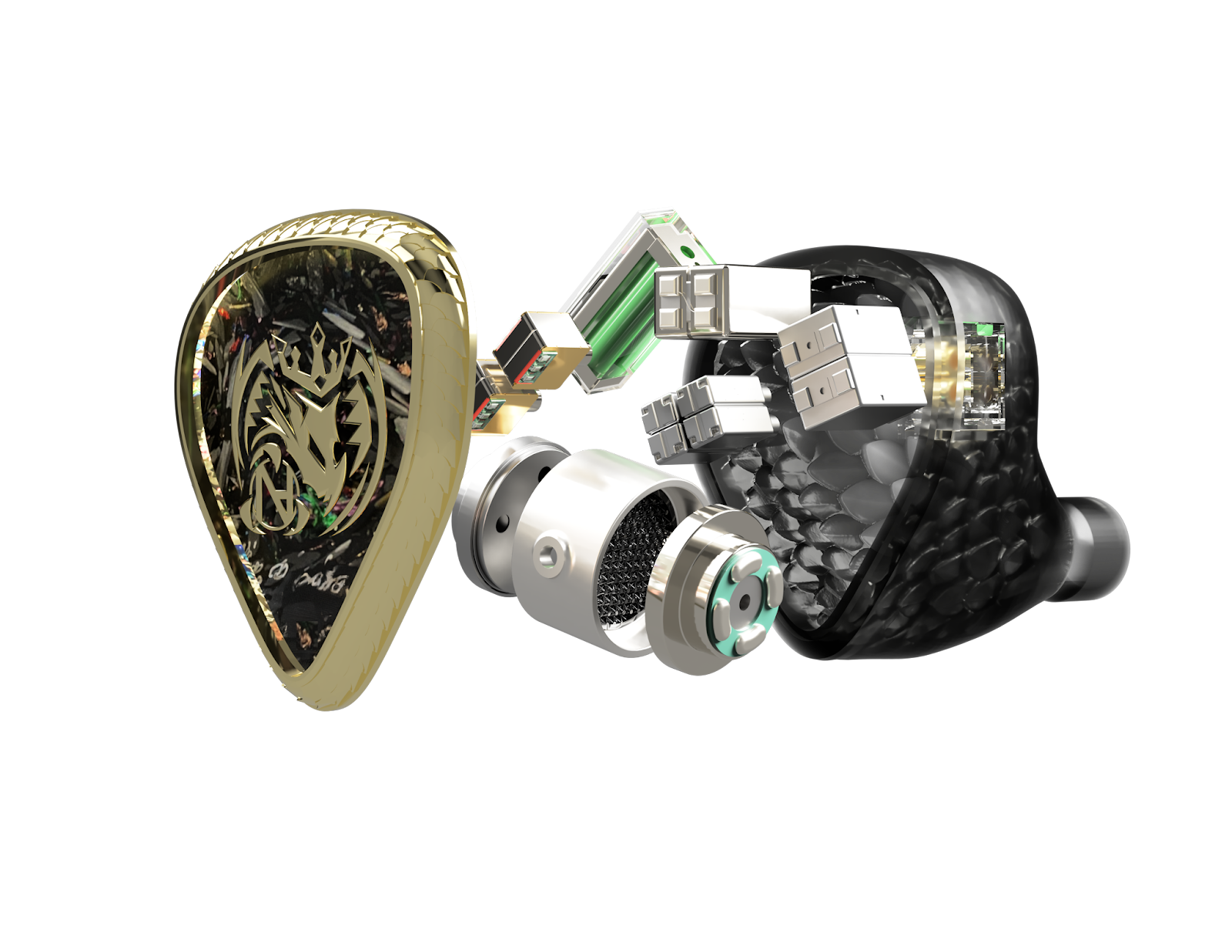

Technically, it employs a proprietary quad-hybrid driver architecture, developed over two years of meticulous research. The configuration includes 2 Sonion bone conduction drivers, 2 custom 9.2mm dynamic drivers, 6 Knowles and Sonion balanced armature drivers, and 4 Sonion ultra-high-frequency electrostatic drivers. This design ensures powerful low frequencies and exceptional mid-to-high resolution, delivering a deeply immersive and detailed listening experience that fully reveals the beauty of music.

Technical Specifications
14 Drivers, Quad Hybrid Configuration Design

Dynamic Drivers: 2 Sub-Low

Dual Diaphragm Bone Conduction Drivers: 2 Mid-Low

Balanced Armature Drivers: 6 (2 Mid-High, 2 High, 2 Ultra High)

Electrostatic Drivers: 4 Super High

6-Way Crossover Design

Impedance: 19 Ohms @ 1kHz

Frequency Response: 15 Hz - 70 kHz

Sensitivity: 115dB @ 1kHz, 1mW

Caliburn - Custom Cable Crafted Exclusively for Pendragon

The Caliburn cable, designed exclusively for the Pendragon, features a coaxial shielding structure with a core of 4N German OFC copper in a Litz Type 4S four-strand configuration, enhancing dynamics and tonal delicacy. Its PVC-coated core and outer layer provide reliable protection, while the inner shielding mesh, made of 5N silver-plated OFC copper, uses cross-weaving techniques to minimize interference and enhance purity. The black and gray dual-tone design features a dragon scale texture, blending aesthetics and technology. This precise construction complements the Pendragon’s driver system, ensuring durability, detailed reproduction, and flagship-level sound quality for an exceptional listening experience.

CABLE SPECIFICATION
Core Gauge: 21.5 AWG

Cable Diameter: 1.8 mm

Weaving Method: 4-strand braided

Core Structure: Litz - Type 4S

Core Material: 4N German OFC Copper

Outer Jacket: Custom SoftFlex PVC from the USA

Termination: OFC High Quality 4.4mm Balanced Termination
