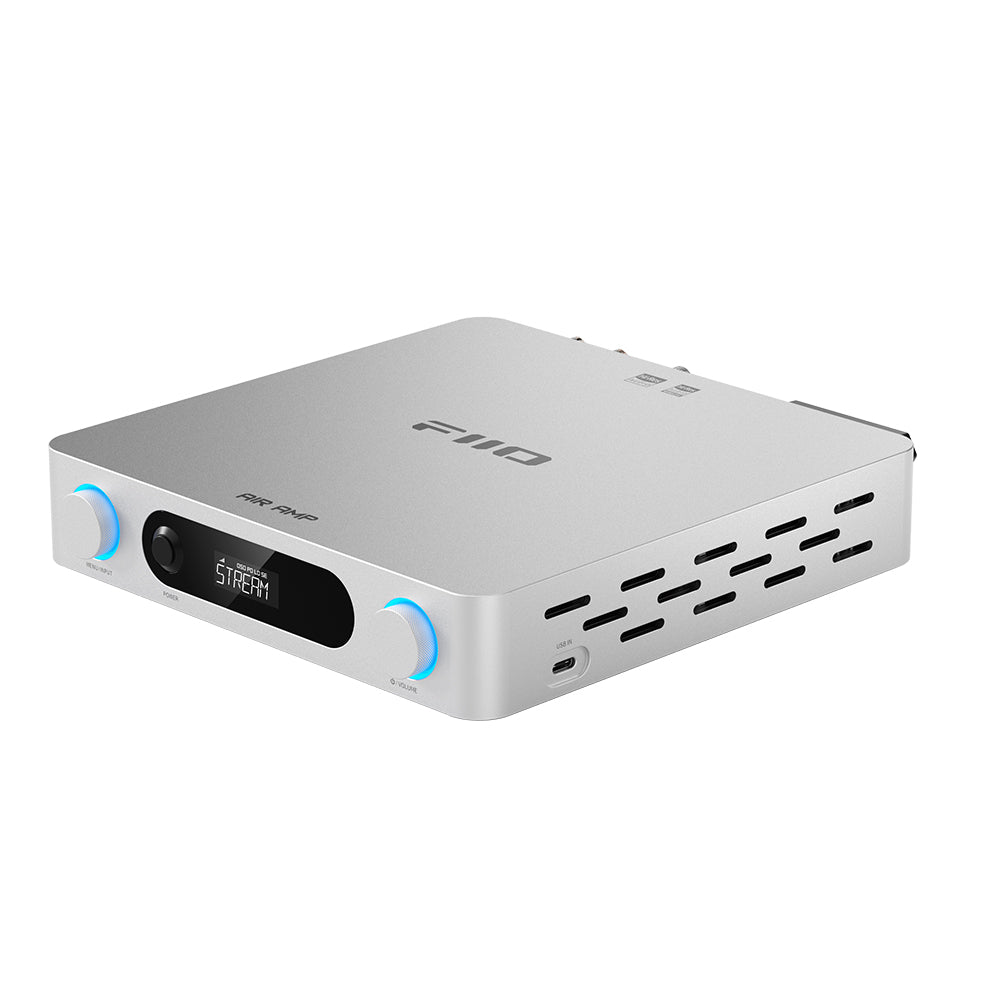

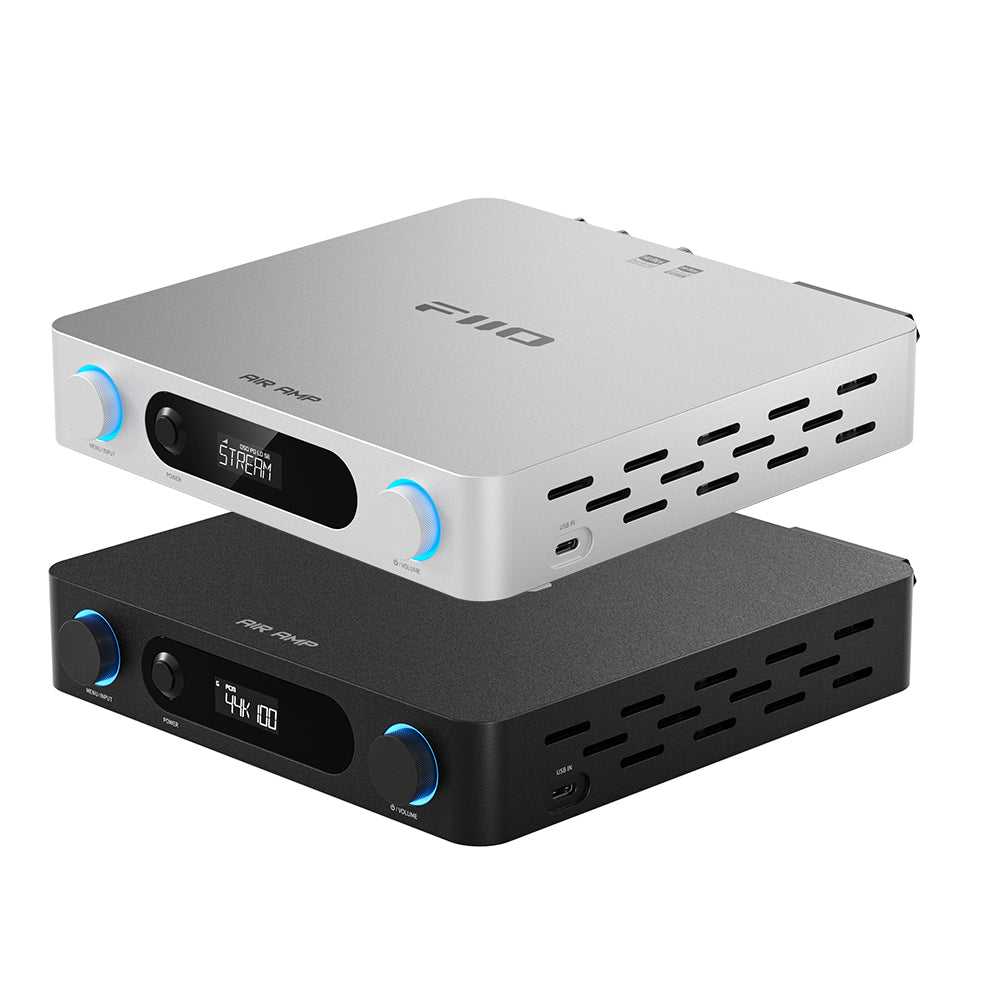

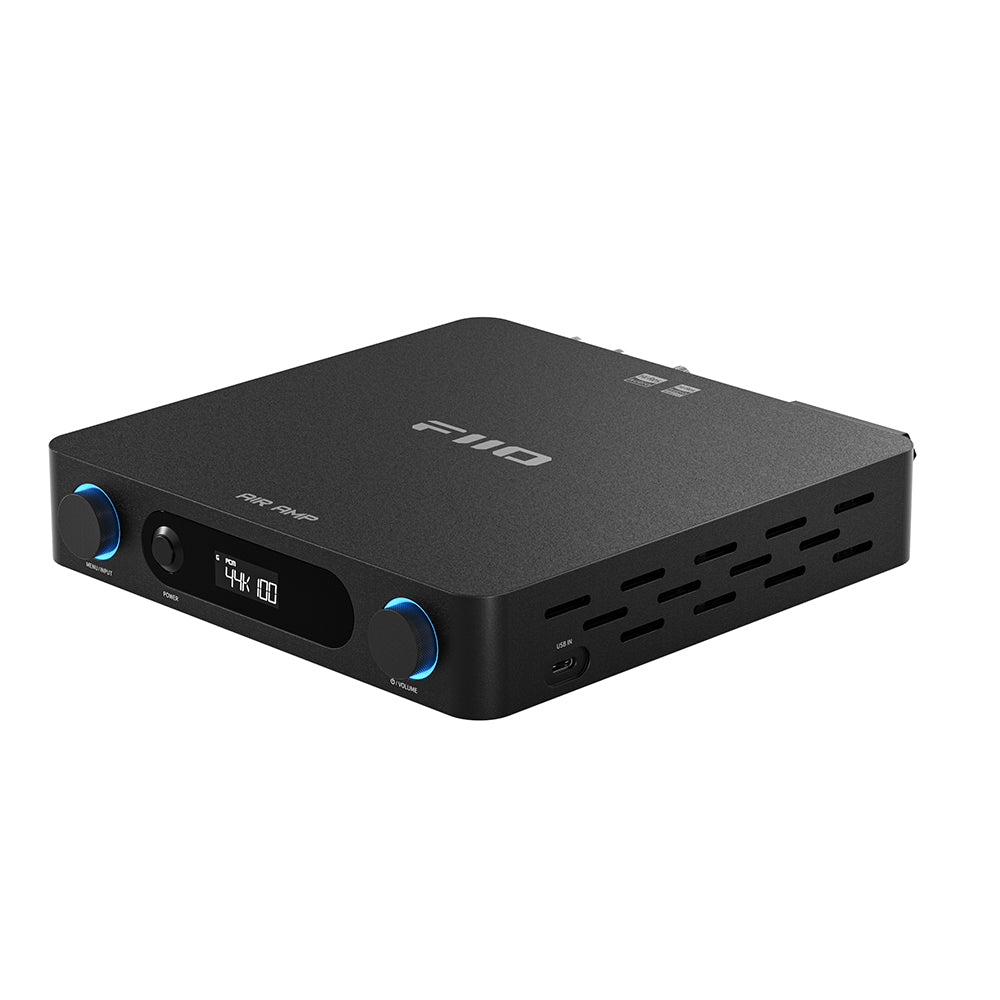

FiiO AIR AMP – Streaming Power Amplifier

Turn your passive speakers into a complete modern Hi-Fi system with the FiiO AIR AMP. This compact all-in-one combines a network streamer, high-resolution DAC, local music player, preamp and powerful Class D amplifier in a chassis measuring just 207 × 188 × 42 mm.

At its heart is a TI TPA3255 Class D amplifier with PFFB (Post-Filter Feedback) technology, delivering 120W + 120W into 4Ω or 90W + 90W into 8Ω with the included 48V/5A power supply. With an optional 48V/10A supply, output can reach 235W + 235W into 4Ω.

High-resolution decoding is handled by an XMOS XU316 USB controller and ESS ES9020Q DAC. USB supports up to PCM 32-bit/768kHz and native DSD512, while network and local playback support up to 32-bit/384kHz and DSD256. Coaxial supports 192kHz/24-bit and DSD64, while optical supports 96kHz/24-bit.

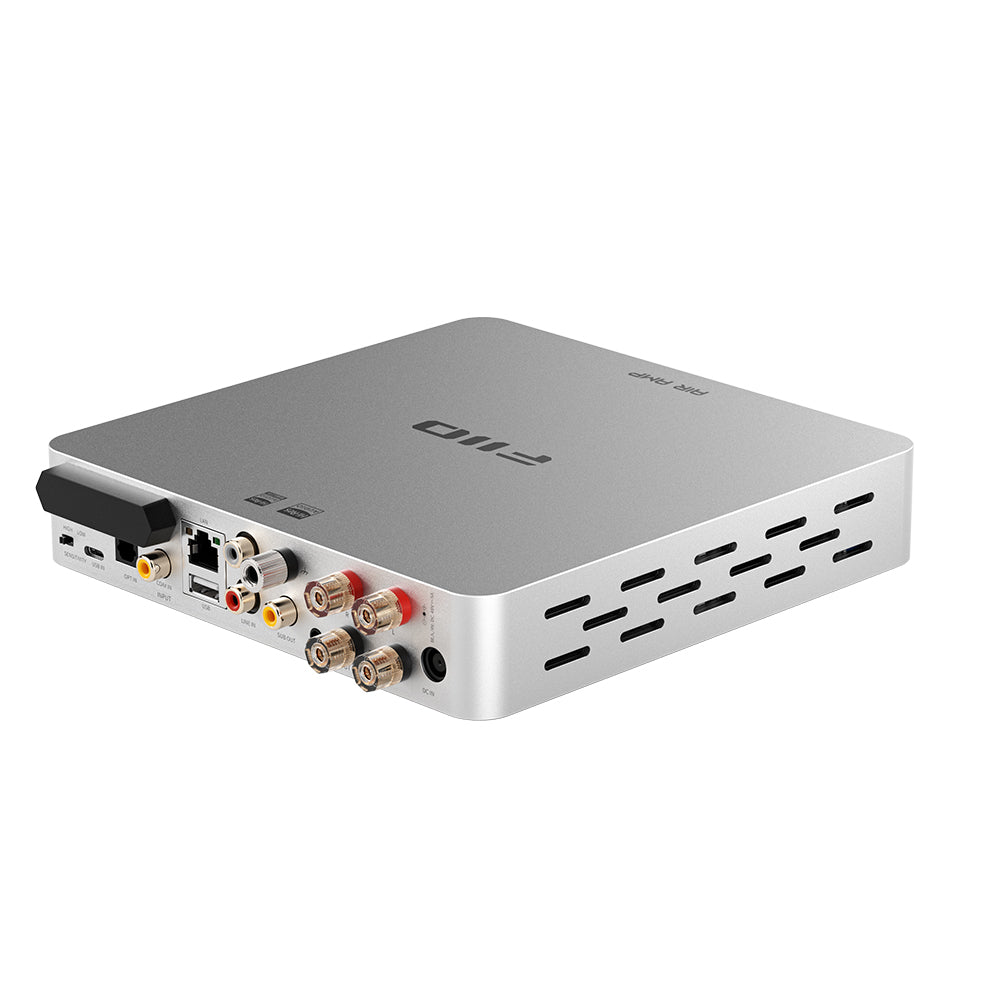

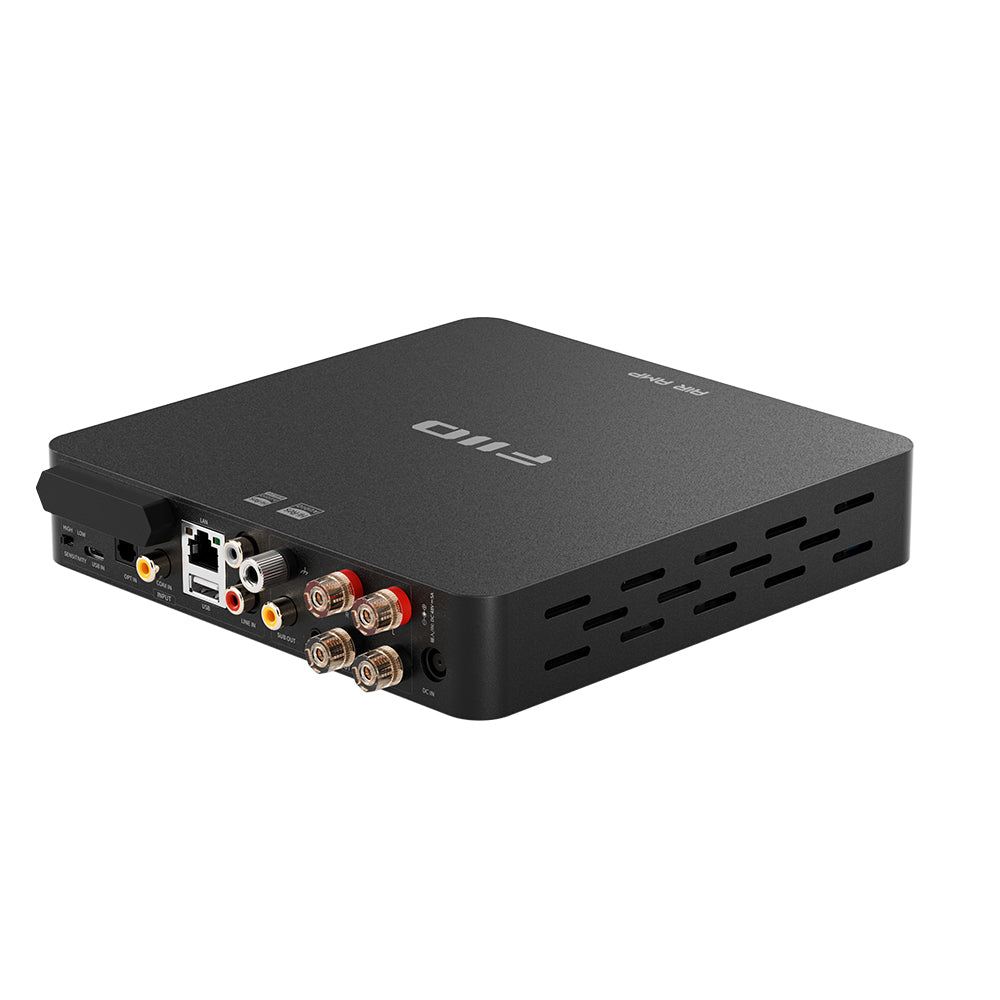

Stream via Roon Ready, AirPlay and QPlay, or play music directly from NAS devices, USB drives and portable hard drives. Connectivity includes USB, optical, coaxial, RCA, network and local playback, plus speaker, subwoofer and preamp outputs.

Fine-tune your system with AUTO EQ, 10-band PEQ and independent ±10dB bass/treble adjustment through the FiiO Control app or web interface. Dual-band 2.4/5GHz Wi-Fi and Gigabit Ethernet provide flexible networking.

Key Specs:

• TI TPA3255 Class D + PFFB
• 120W + 120W @ 4Ω; 90W + 90W @ 8Ω
• Optional 48V/10A: up to 235W + 235W @ 4Ω
• ESS ES9020Q DAC + XMOS XU316
• USB: PCM 768kHz/32-bit, Native DSD512
• Local/Streaming: 384kHz/32-bit, DSD256

• Roon Ready, AirPlay, QPlay
• NAS & USB playback
• 7 inputs / 3 outputs
• AUTO EQ + 10-band PEQ
• 1.1" LCD + IR remote
• Gigabit Ethernet + 2.4/5GHz Wi-Fi
• 207 × 188 × 42 mm; approx. 930g
