Furutech’s new e-TP80S series features audio grade FILTER and MOV circuitry:

Combined EMI Filter and Surge protection
Voltage fluctuations, electrical storms and power spikes can damage sensitive electronics. Furutech’s e-TP80S is fitted with a surge protector for that important layer of defense to protect your system.
During a voltage spike event, the e-TP80S’s new MOV circuitry will automatically cut power to the main circuit board EMI filter line to prevent short circuit and protect your system. In addition, the audio grade MOV circuitry will damp any electrical and mechanical resonance caused by electrical resistance, heat and power flow. For convenience LEDs indicate normal function of the e-TP80S surge protection function and EMI filters. When the LEDs are “on” you are noise free and surge protected.

Furutech’s Two-Stage Cryogenic and Demagnetization Alpha Process

Using cutting-edge technology and materials, Furutech developed a low-temperature two-stage process that significantly improves every facet of audio and video performance. The treatment begins during the manufacturing process with a deep, conditioning cryogenic freeze of all metal parts. Using high-end refrigerants — liquid N2 or He — Furutech achieves temperatures of between -196 to -250℃. The treated parts actually change their molecular structure at these extremes of temperature relieving internal stress. The molecules bond together more tightly and the overall structure becomes more stable. This improves electrical conductivity and so power and signal transfer.

Step two in the Alpha Process exposes these same parts to the patented Ring Demagnetization treatment. Ordinary high-power magnets used for this purpose often increase magnetic effects; they leave some areas more magnetized than others. This patented process uses controlled attenuation to completely eliminate magnetization for immediately more vivid and colorful improvements. Ring Demagnetization further enhances conductivity of all treated materials.

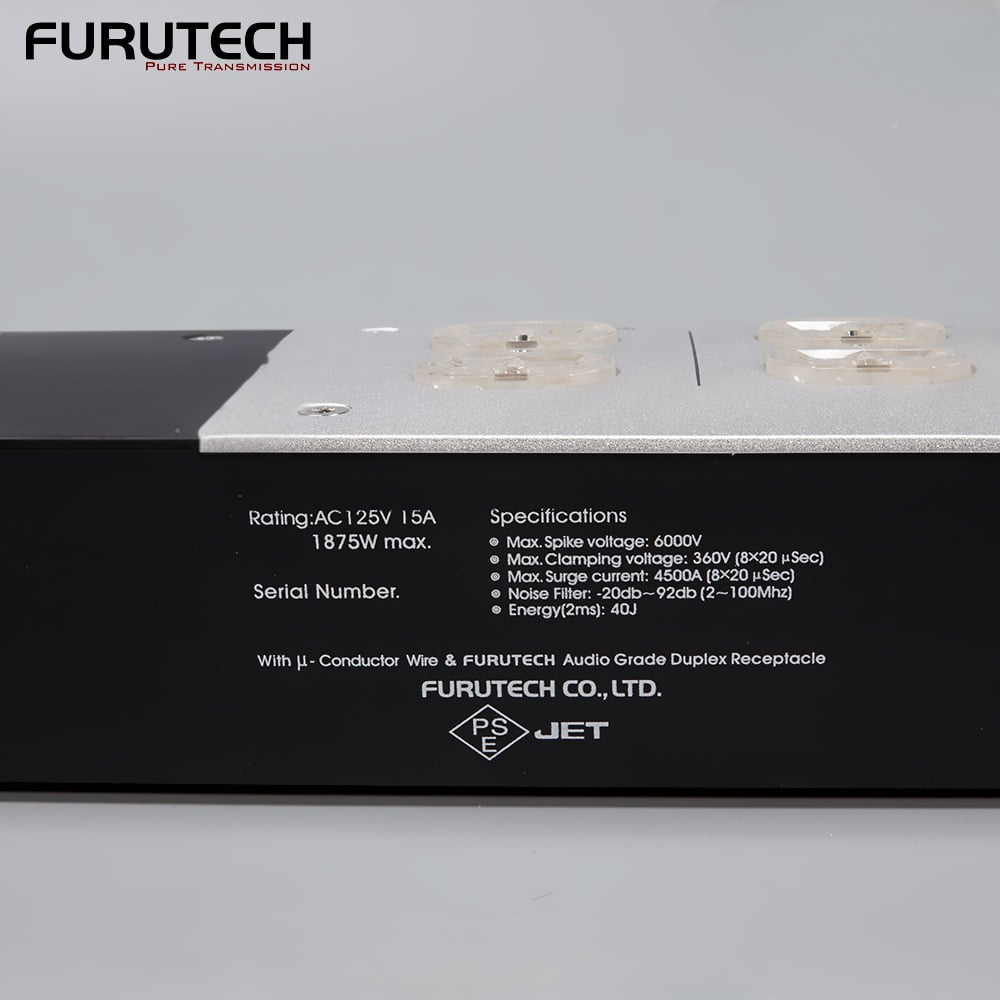

e-TP80S specifications:

 Rating: 15A 125V AC 1875W
 Grounding outlet: 8 Holes
 Overload protective type: Automatic circuit (replacement of varistor required after surge protection event)
 Insulation volt.: 　AC 1500V 1 MINUTE 5mA
 Leakage current: Under 1.0mA
 Max. Spike voltage: 6000V
 Max. Clamping voltage: 360V (8×20μSec)
 Max. Surge current: 4500A (8×20μSec)
 Noise Filter: -20db~92db (2~100Mhz)
 Energy (2ms):40J
 Insulation resistance: 300MΩ Above DC 500V
 Body material: AL. ALLOY PLATE (PAINTED)
 Power indicator: LED
 Surge protection indicator: LED
 Beautifully engineered gold plating treatment nonmagnetic Phosphor bronze receptacles.
 Furutech’s high-end audio grade IEC inlet FI-06 (G)
 Formula GC-303
 Outward size: 400X130X60 mm approx.
 Net Weight: 1.8Kg approx.
