Luxsin X8

Features:
-Built around 8 Cirrus Logic CS43198 DAC chips
-Up to 4800mW + 4800mW headphone output power
-Proprietary Digital Audio Core processing module
-Featuring the world's first AI assisted EQ tuning

8 × CS43198 DAC
The X8 features eight Cirrus Logic CS43198 DAC chips in a true dual-mono parallel architecture, with four DACs operating in parallel per channel. Left and right channels are fully independent in power supply, circuit layout, and signal path, minimizing crosstalk and interference.

Upgraded Output Power
The X8 headphone amplifier features OPA1612 operational amplifiers and TPA6120A2 high-current drivers, delivering 4800 mV output power per channel. This substantial power enables driving the most demanding headphones with minimal distortion and maximum linearity.

Auto Impedance Detection
Automatic impedance detection across all output interfaces (XLR4, 4.4 mm, 6.35 mm) provides precise gain adjustment without compromising audio quality.

The AI Era of PEQ
The X8 features the world's first AI-assisted EQ tuning. With a simple voice or text command, the AI instantly personalizes the music profile and fine-tunes details, making professional audio tuning accessible to everyone. Control is available through a mobile app or web interface with complete multilingual support.

Luxsin Controller
The X8 supports multiple flexible and convenient control methods, including
mobile device apps (Android/iOS), computer web‑based control (Windows/macOS), and an optional IR remote (sold separately). The device firmware supports both local and online updates, ensuring continuous optimization and an ever‑evolving user experience.

TECHNICAL SPECIFICATIONS

Parameters
Dimensions: 236mm (L) × 236.8mm (W) × 64mm (H)
Weight: 2750g
Input Power: AC 100-120V/220-240V~50/60Hz
Display: 4' LCD （480*960）Touchscreen

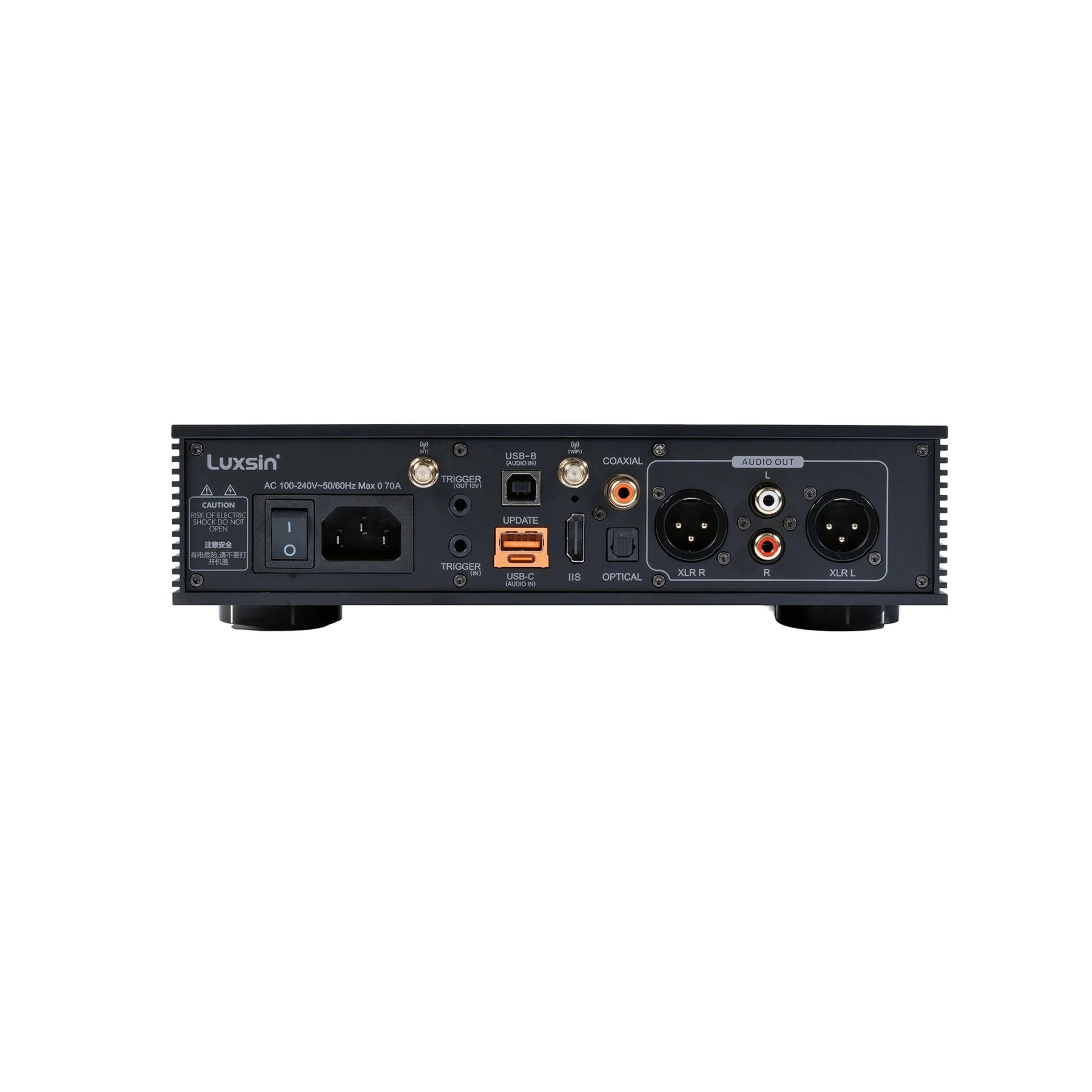

Input / Output
USB-A Input: For Local Upgrade
USB- B/C Input: Support PCM 768kHz/32bit；DSD512(Native)
IIS Input: Support PCM 768kHz/32bit；DSD512(Native)
Coaxial / Optical Input: Support PCM 192kHz/24bit
Trigger In / Out: Standard 3.5mm Connector

XLR Output Audio Characteristics
SNR: ≥129.5dB
THD+N: ＜-121.8dB @unweighted
Crosstalk: ≥133dB (1kHz@200kΩ)
Noise Floor: ＜1.1uVrms
Output Level:  4.2Vrms  (1kHz@200kΩ)

RCA Output Audio Characteristics
SNR: ≥124.5dB
THD+N: ＜-120dB @unweighted
Crosstalk: ≥125dB (1kHz@100kΩ)
Noise Floor: ＜1.3uVrms
Output Level: 2.1Vrms  (1kHz@100kΩ)

Performance and Parameters of Balanced Headphone Output（4.4mm/XLR4）
High Gain: L+R≥4840mW+4840mW（16Ω，THD+N＜1%)
Output Impedance: ＜1Ω
THD+N: ＜-117dB(1kHz/0dB@32Ω)
SNR: ≥123dB
Crosstalk: ≥119dB (1kHz@32Ω)

Performance and Parameters of Unbalanced Headphone Output（6.35mm）
High Gain: L+R≥2900mW+2900mW（16Ω，THD+N＜1%)
Output Impedance: ＜1Ω
THD+N: ＜-115dB(1kHz/0dB@32Ω)
SNR: ≥121dB
