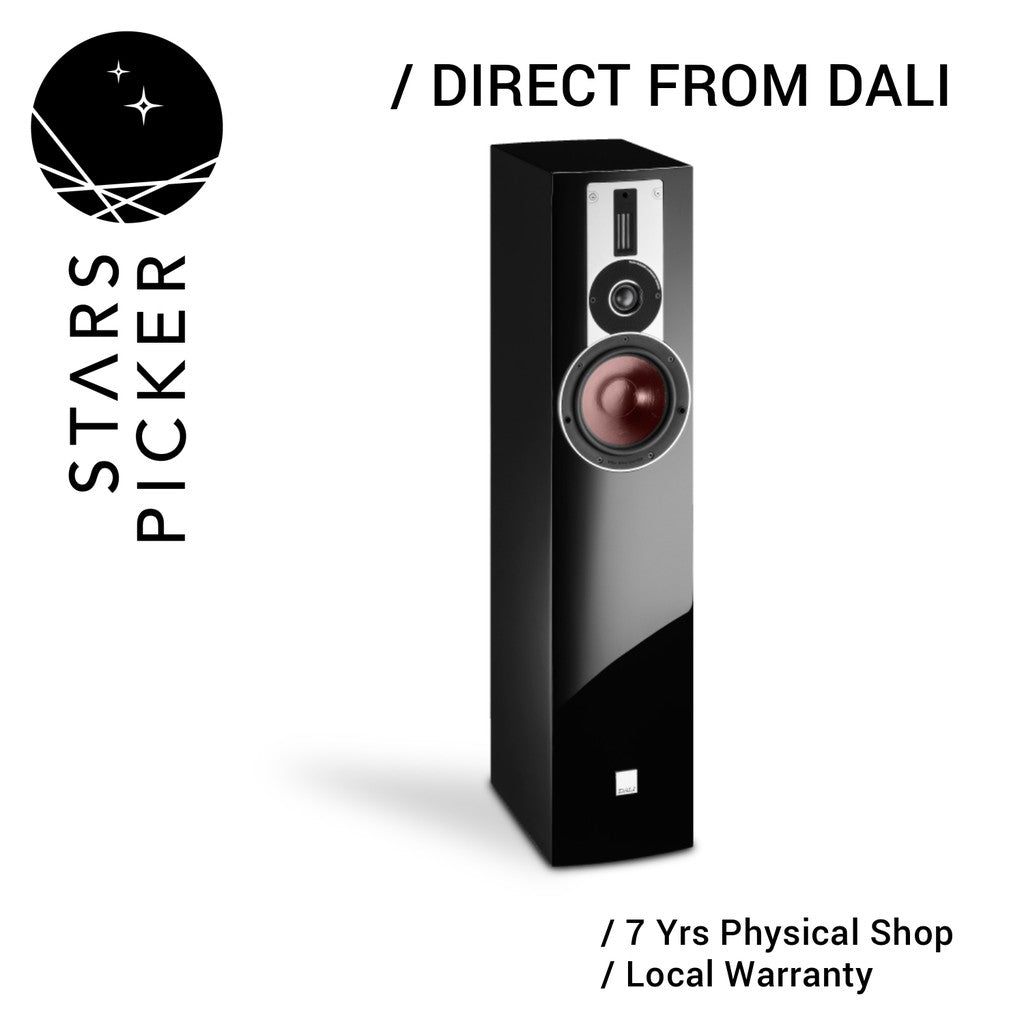

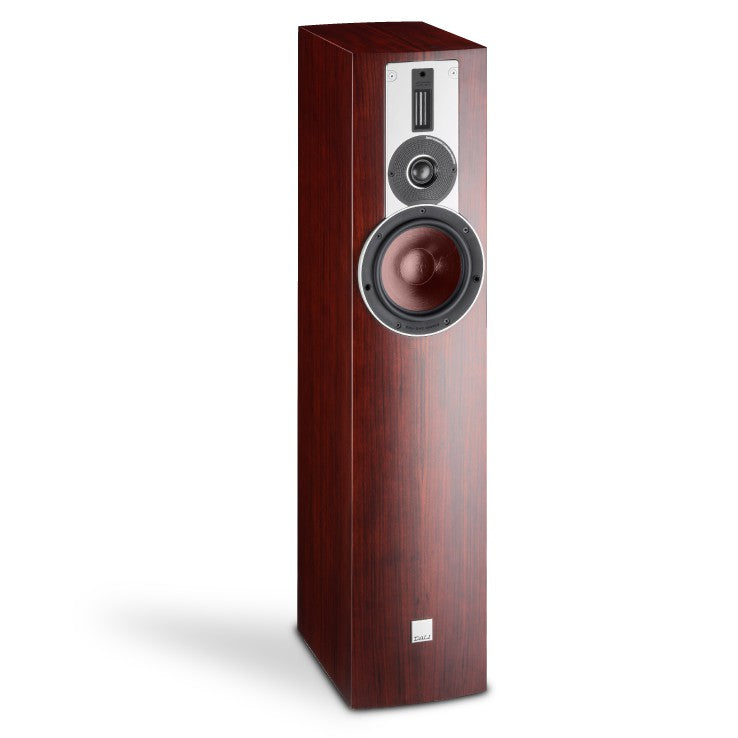

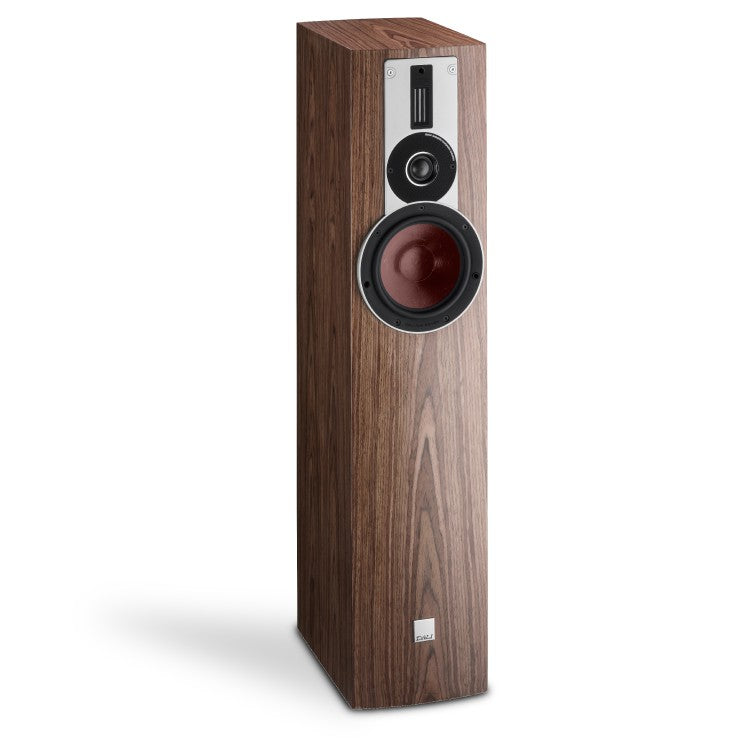

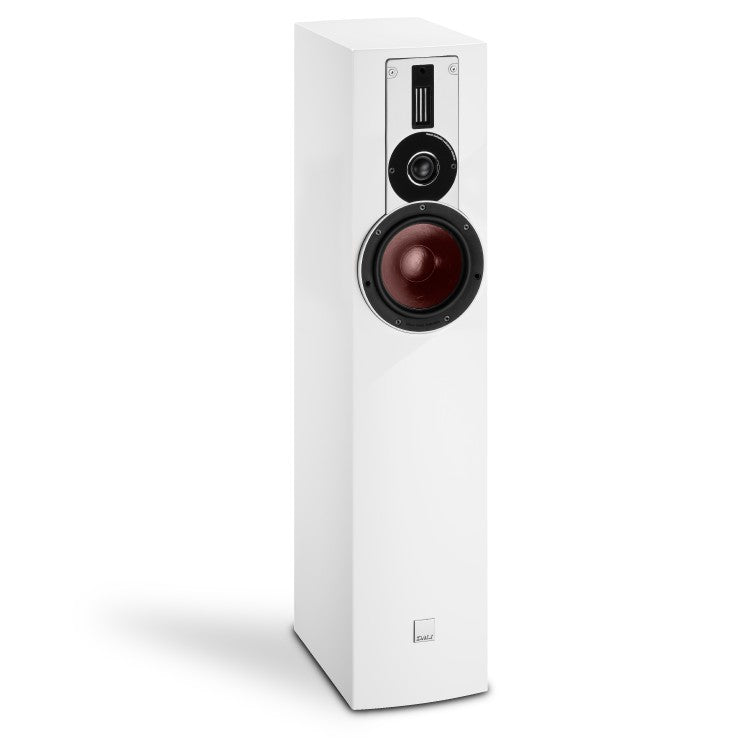

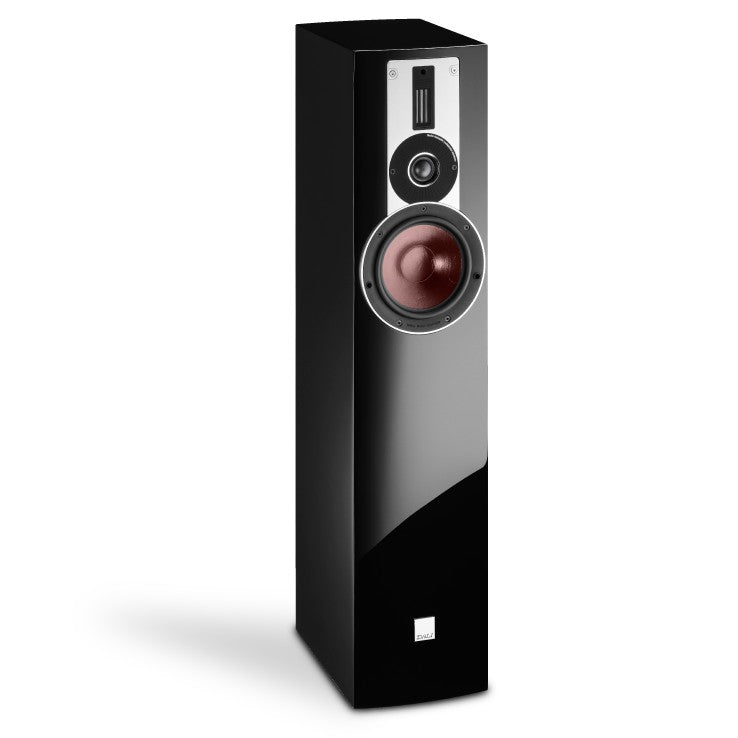

Dali Rubicon 5
With a large cabinet volume and a hybrid tweeter module containing both a soft dome and ribbon tweeter, the floor standing RUBICON 5 extend and widen the high frequencies for a crisp detail. The bass is deep and perfectly timed for a more demanding presence. All this add up to a potent loudspeaker despite its still compact size.
With the introduction of the SMC based "Linear Drive System", we've broken new ground in the loudspeaker industry. Utilizing the technologies behind the SMC in the RUBICON 5, we aim to create an extremely low distortion and maximize the level of details, even at low volume. With the drivers manufactured in-house at our Danish factory, and featuring the latest in magnet motor technology, the RUBICON 5 is ready to set new standards for audio quality for Hi-Fi lovers around the world.
In the RUBICON 5, DALI makes use of both the soft dome tweeter working alone, and the hybrid tweeter configuration an amazing rendering of the high frequencies. The voice coil used in the RUBICON 5 is designed to be very light and agile in order to achieve a broader bandwidth. This lighter voice coil is placed inside a powerful ferrite magnet that keeps a tight control of its movements.
The cone used in the RUBICON 5 draws upon the heritage from the EPICON technologies, and has a light, rigid and randomly uneven structure. This lower the complexity of the central part of the motor, ensures even piston like movements, reduces the possibility of surface resonance greatly and creates an extremely low distortion within the RUBICON 5.
The gracefully elegant exterior of the RUBICON works as the base for the low-loss drivers. In every cabinet, the mid-range and bass drivers are separated into their own chambers. Turbulence is minimized through a bass reflex port, which is placed directly behind every woofer, and the timing between the woofer and the bass port is thereby also optimized.
DALI RUBICON 5 SPECS
Product series RUBICON
Frequency Range (+/-3 dB) [Hz] 45 - 34.000
Sensitivity (2,83 V/1 m) [dB] 86.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 107
Recommended Amplifier Power [W] 60 - 150
Crossover Frequency [Hz] 2,900 / 14,000
Crossover Principle 2½ + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity 1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type Ribbon
Hybrid tweeter module, High frequency driver, Quantity 1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 6½"
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Bass Reflex
Bass Reflex Tuning Frequency [Hz] 39.0
Connection Input Bi-Wiring
Magnetic Shielding No
Recommended Placement Floor
Recommended Distance From Wall [cm] 20 - 150
Dimensions With Base (HxWxD) [mm] 890 x 195 x 339
