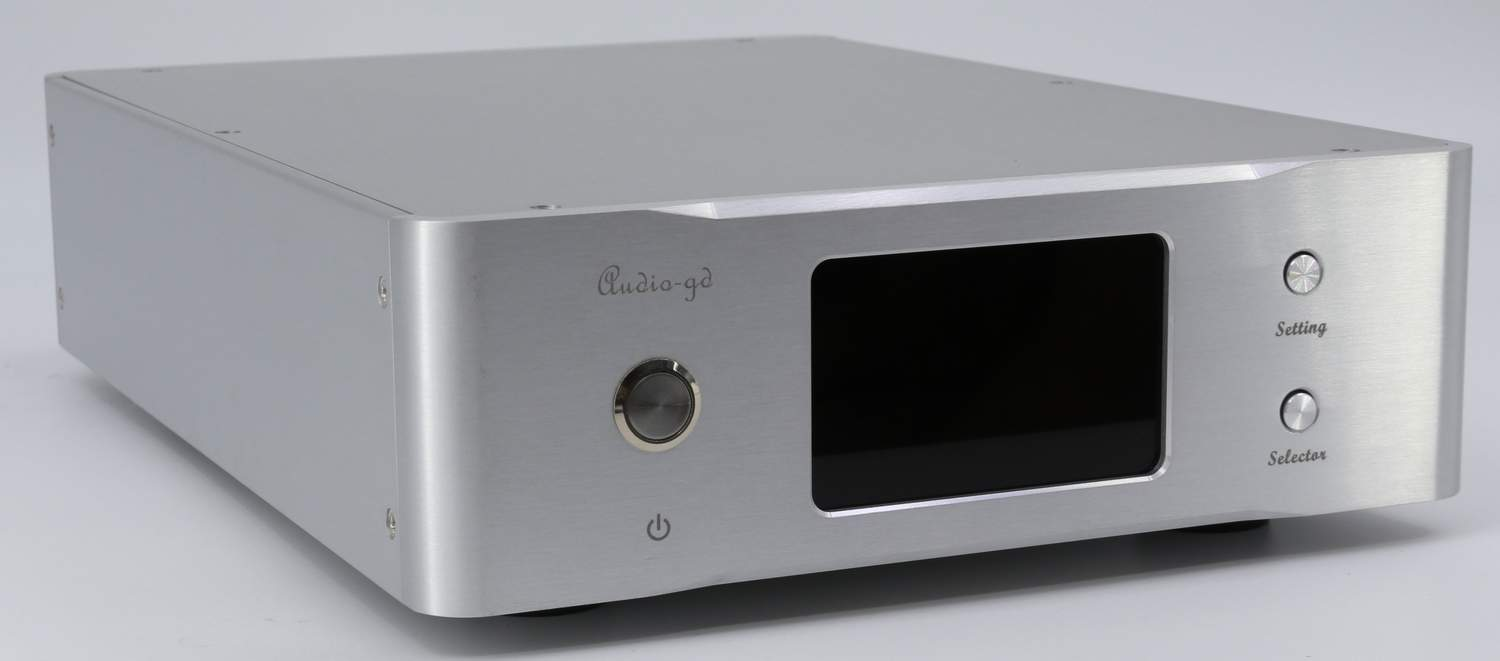

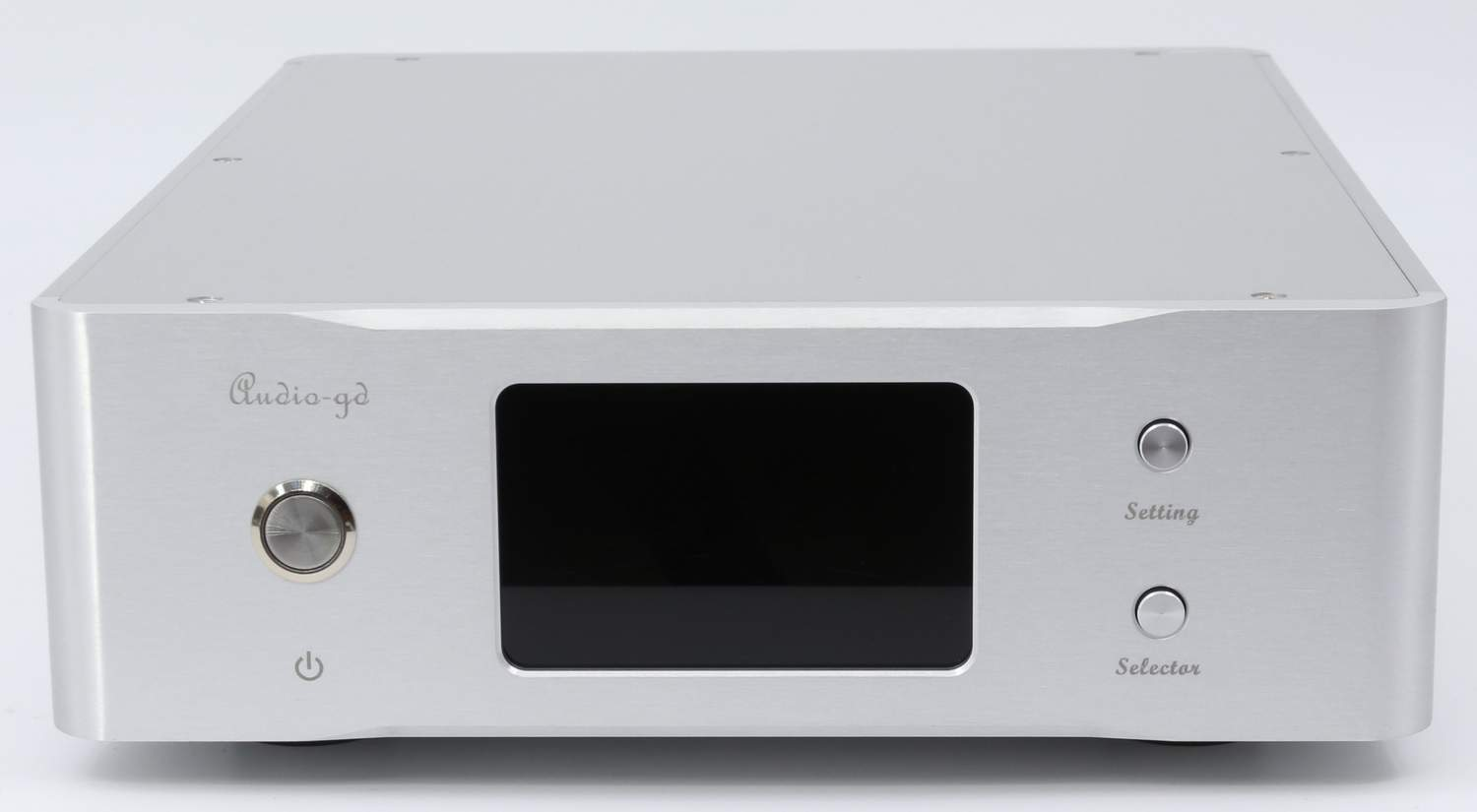

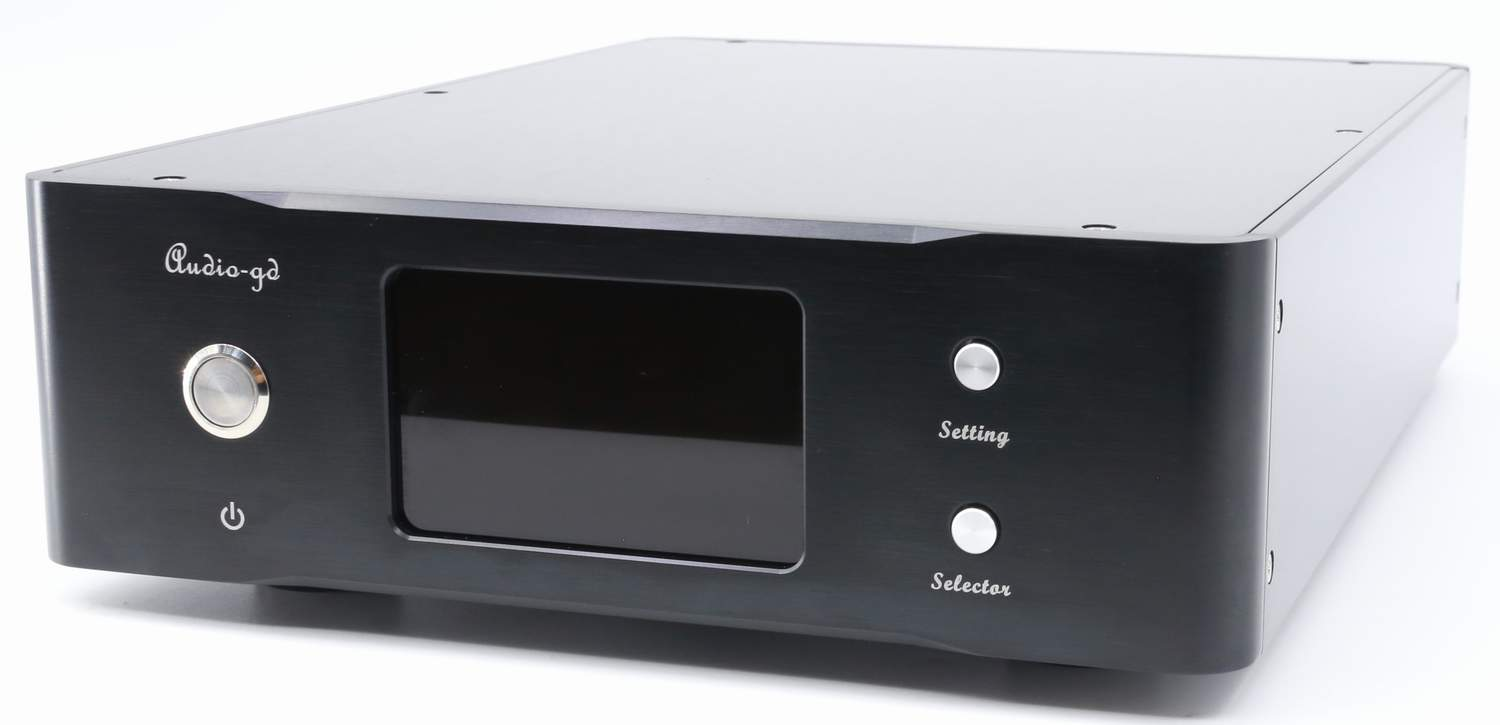

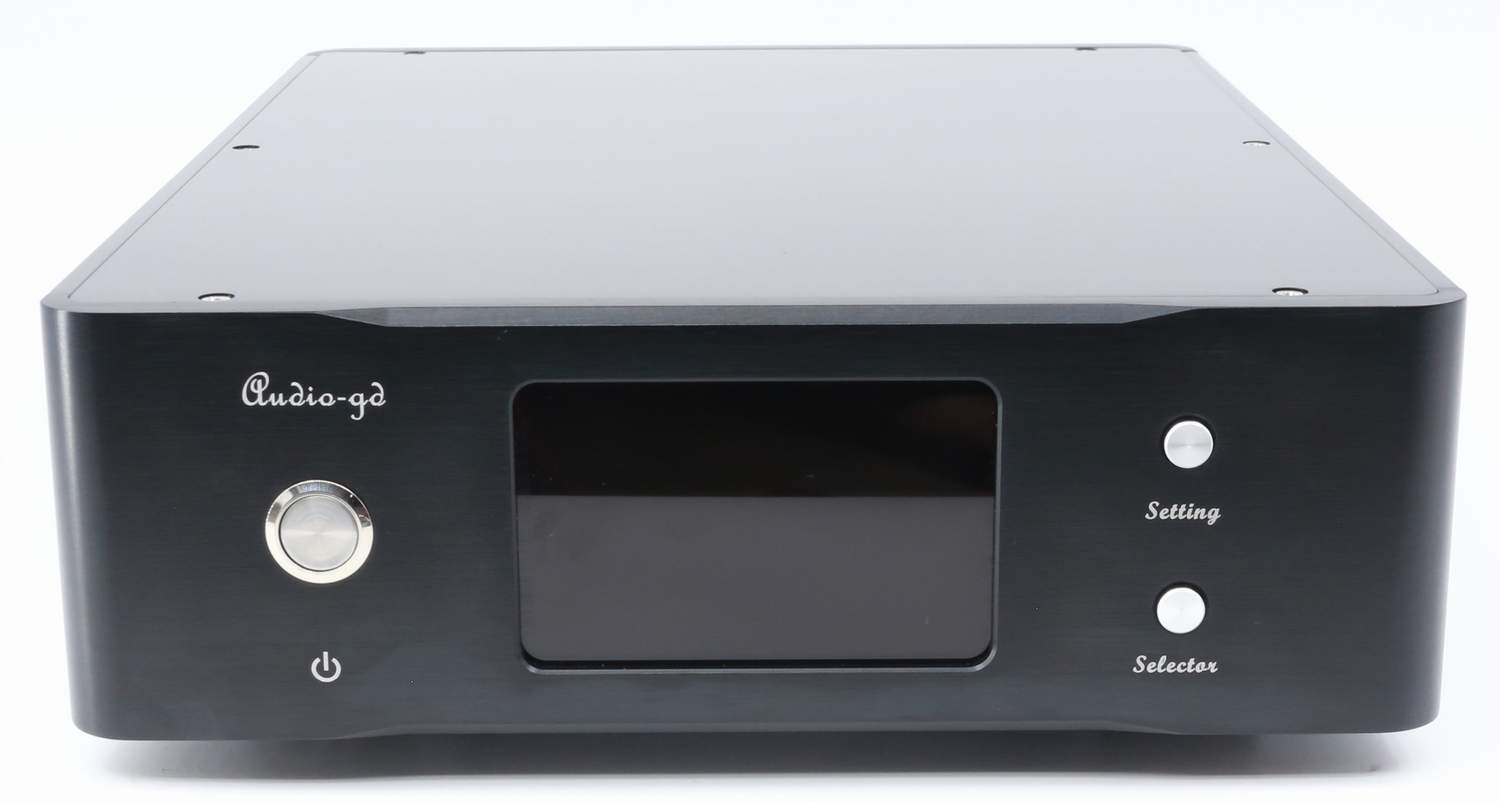

DI25-HE USB / I2S CONVERTER & RECLOCKER
Featuring versatile audio outputs such as AES/EBU, RCA Coaxial, and IIS HDMI, this converter guarantees seamless compatibility across a diverse array of devices.

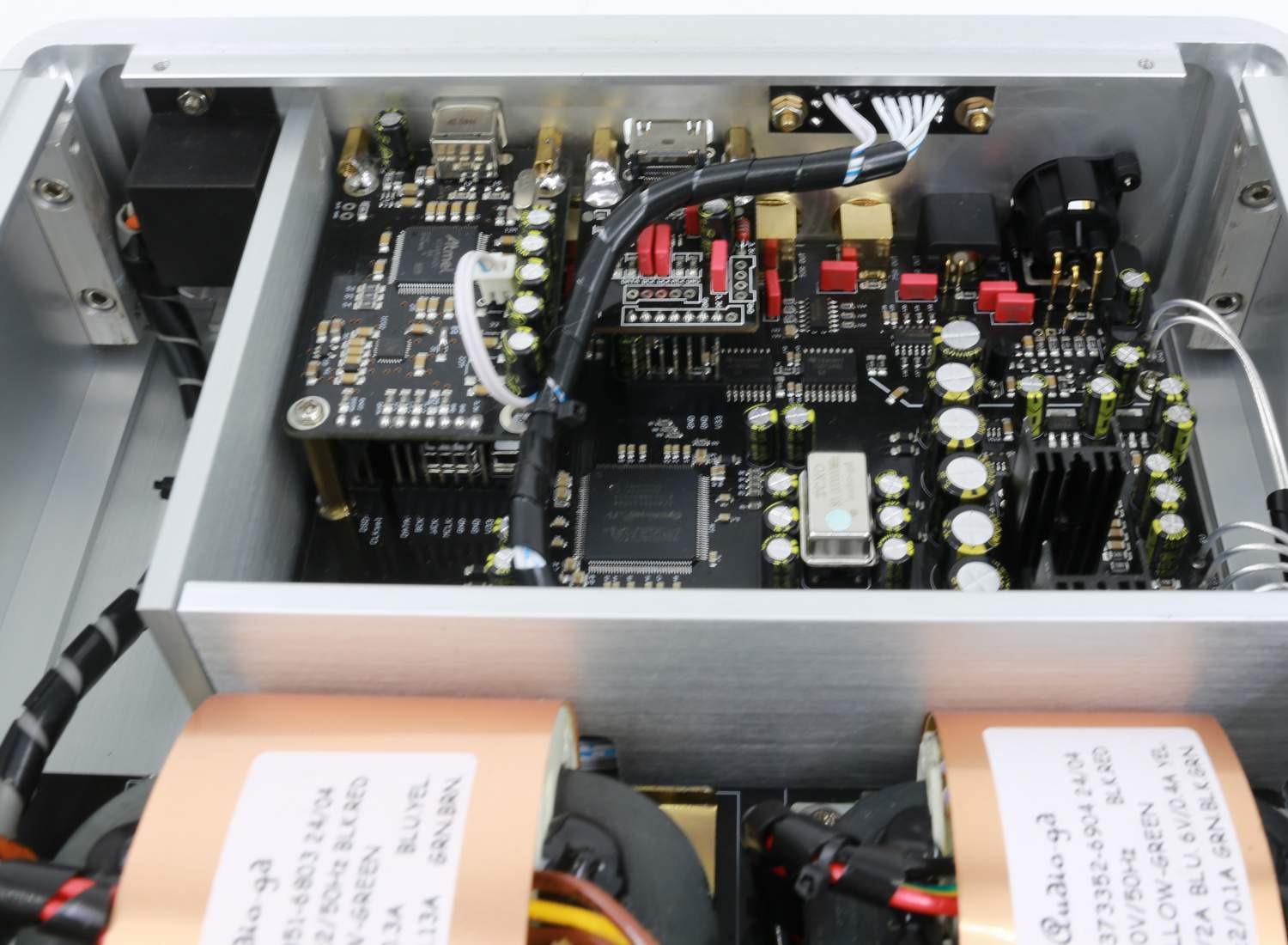

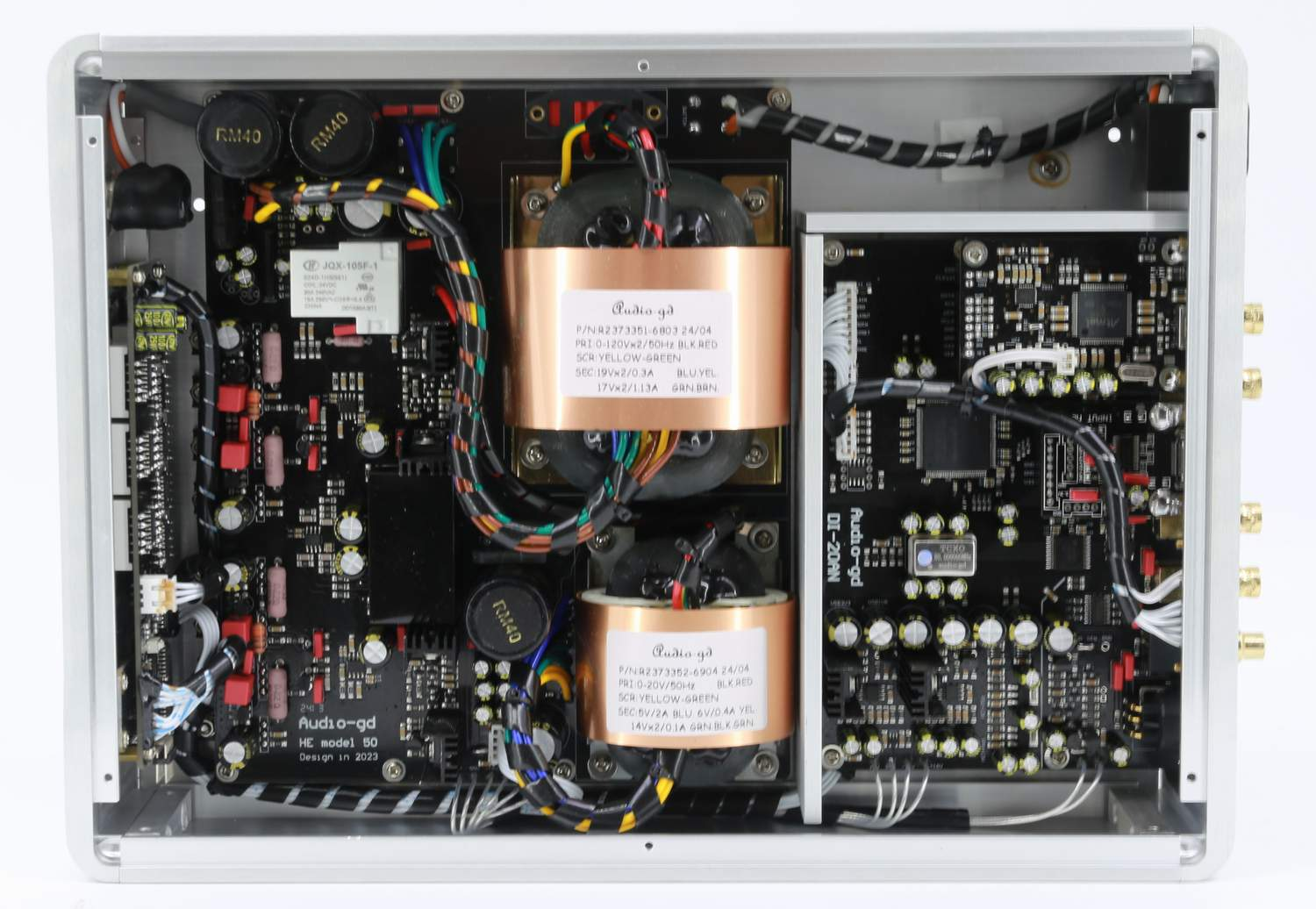

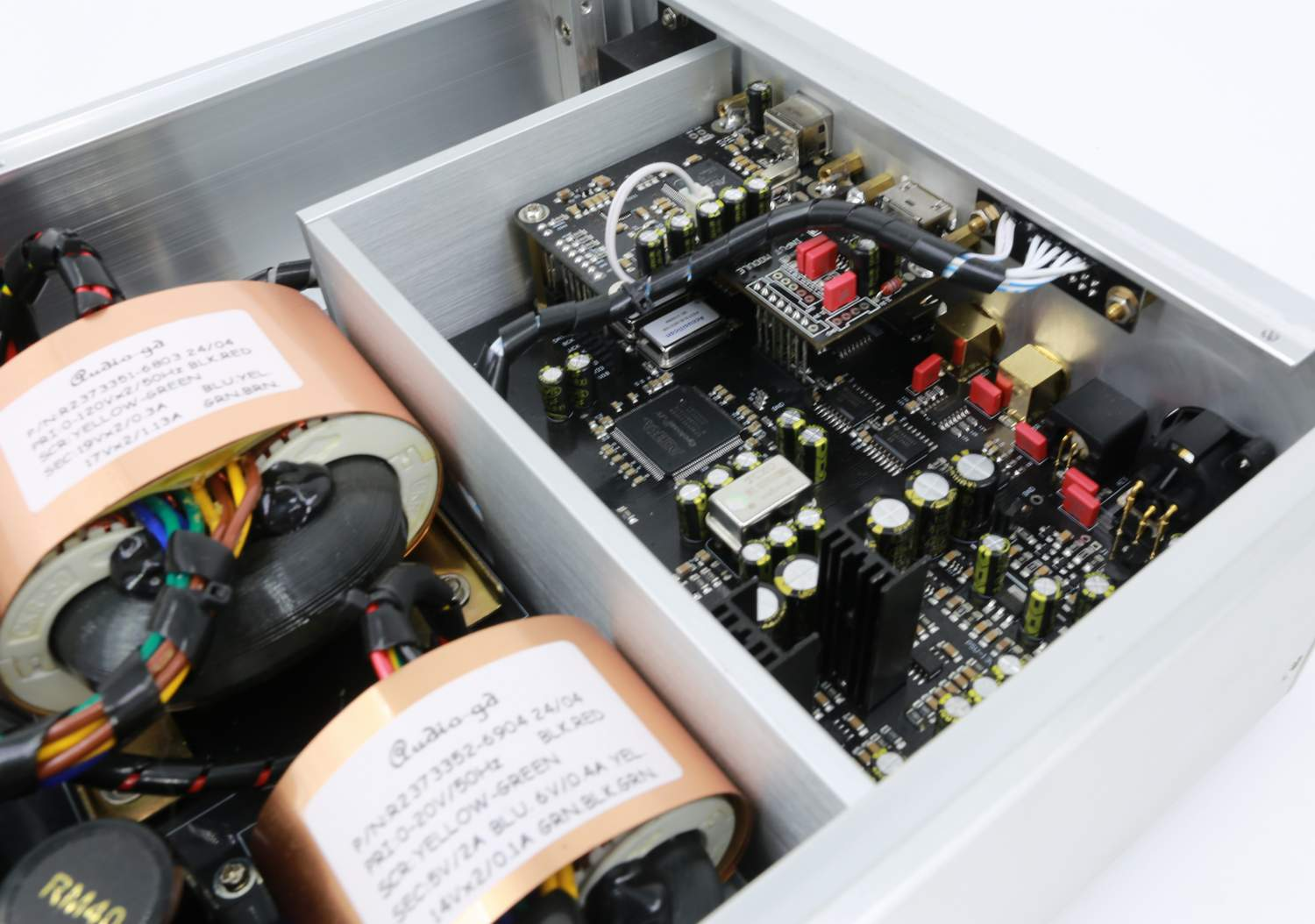

What sets this converter apart is its discrete regenerate power supply, delivering a clean and consistent power source for optimal performance. Say goodbye to unwanted noise and distortion, as our converter prioritizes pristine audio reproduction.

For audiophiles seeking precision, the Special 10MHz Master clock output provides highest accuracy. With both 50 and 75-ohm BNC options, seamlessly connect to your D/A Converter and enjoy a heightened level of audio refinement.

HIGHLIGHTS
-Amanero USB interface , Support up to PCM384K / DSD512
-Accusilicon  90/98M AS318-B Series Professional Audiophile XO’s
-50 & 75 ohm impedance 10MHz Master Clock inputs & outputs
-Integrated 10MHz  ultra low jitter/phase noise clock output (50 & 75 ohm output ports)
-All inputs & outputs are galvanic isolated
-FPGA firmware update support to enhance features and sound quality.

DIGITAL INPUTS
I2S audio input
HDMI I2S input interface
Supports MCK up to 40Mhz

USB audio input
USB2.0 / USB3.0 support)
Support Windows, OSX, Linux, ISO
External 10MHz Clock Input (BNC)
50 & 75Ohm inputs available
0.3Vpp -3Vpp
FPGA firmware update port
Future enhancements.
Windows Software included

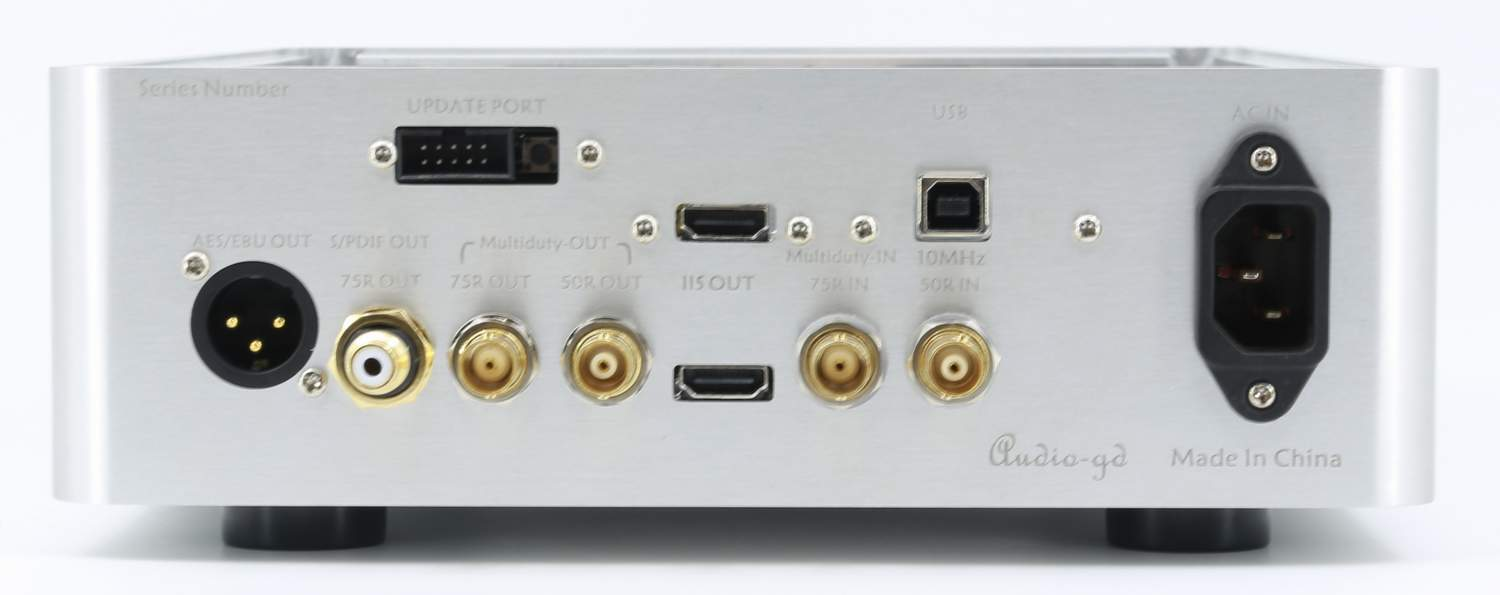

DIGITAL OUTPUTS
AES/EBU 110Ohm output (XLR)
Coaxial 75Ohm output (RCA)
IIS LVDS 100Ohm output (HDMI)
10Mhz Master Reference Clock Output (BNC) (9dbm @50 ohm

Specifications
Operating systems: Windows, OSX, Linux, ISO
Firmware Updates: Windows Software
Supported Sample Rates: USB & HDMI IIS : 44.1kHz – 384kHz /32Bit DSD64-512
AES/EBU & SPDIF Outputs: 44.1kHz – 384khz
Power Requirements
Version 1: 100-120V  AC 50/60 Hz
Version 2:  220-240V  AC 50/60 Hz
Power Consumption: 17 Watt
Package Weight: 5kg
Dimensions: W240 X L360 X H85 (MM, with feet, Fully aluminium )
Accessories:
-USB Cable
-USB Blaster (Firmware Updates)
