Premium Quality Seven-Driver Tribrid Setup
Moondrop Meteor brings us the latest in the industry. The pair comes equipped with an advanced seven-driver tribrid configuration on each side. It houses a 13mm large sized dynamic driver, a composite dual Balanced armature, and four miniature planar magnetic drivers. Together, these drivers are tuned and adjusted professionally for a clean and crisp sound reproduction. Moondrop Meteor follows the Moondrop’s set VDSF target response curve ensuring a well-defined sonic excellence with the pair.

Advanced Three-Way Frequency Crossover With XTM Complex Technology
The Seven drivers are arranged together in a three-way frequency crossover. The 13mm large-sized DD unit here is responsible for producing a strong, sensational lower-end response delivering quality mid-bass and a rumbling sub-bass. The midrange section incorporates the composite dual BA setup promising a clean, accurate midrange with lovely vocals and well-separated instruments. With the four planar drivers, we achieve a well-defined, clear, and extended high-frequency band.

Professionally Designed Internal Cavity Structure
In order to achieve a true high-resolution sound performance, Each driver is carefully placed inside the ear shells. The cavities are precisely crafted using high-precision DLC 3D printing technology. Moondrop has joined hands with HeyGears, the indusdtry’s most premium brand to offer the ultra-precise 3D printing services. Each driver is placed properly at a calculated distance and calculated angle.

Precise Passive Acoustic Notch Filter
Moondrop has featured a precisely developed passive acoustic notch filter structure on the pair. It is created by combining metal components to the 3D printed front-cavity structure. This configuration effectively eliminates fluctuations caused by the resonance of the dynamic driver, ensuring a pure and smooth sound response.

Specifications:
Driver: 1DD+2BA+4Planar with Three-way Frequency Crossover
lmpedance: 18.5Ω±15%(@1kHz)
Sensitivity: 120dB/Vrms(@1kHz)
Frequency Response: 9Hz-35kHz
Effective Frequency Response:
20Hz-20kHz (IEC60318-4,3dB)
THD+N: THD≤0.6% (@1kHz, 94dB)
Connector: 0.78mm-2pin

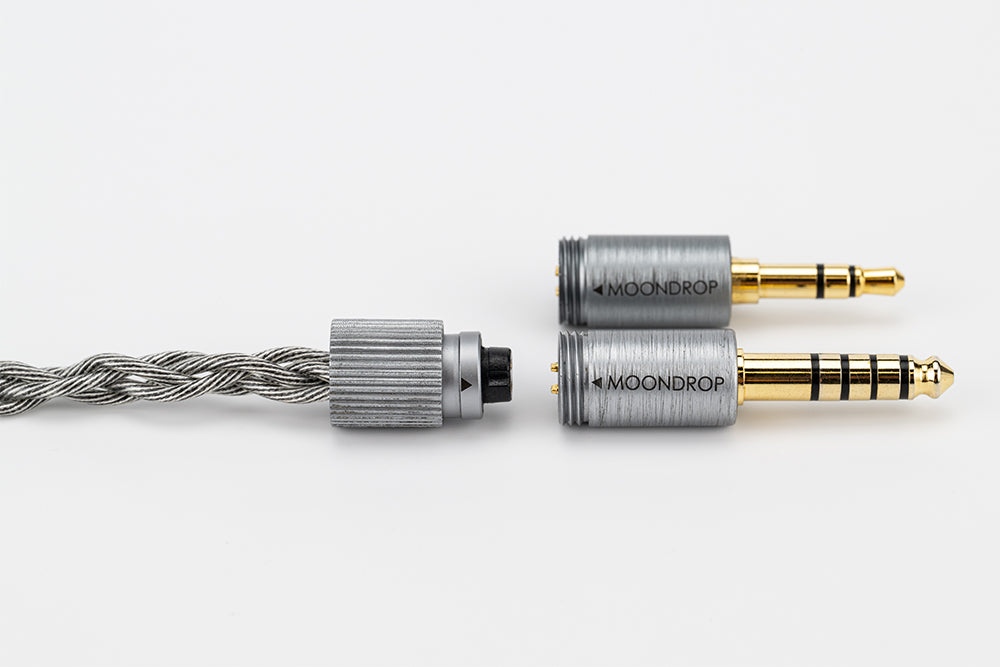

Plugs: 3.5mm SE + 4.4mm BAL
