MOONDROP RAYS

1DD+1Planar Gaming IEMs
Precision Tuning for Pro-Level Gaming
Visual Multi-Point PEQ for Full Customization

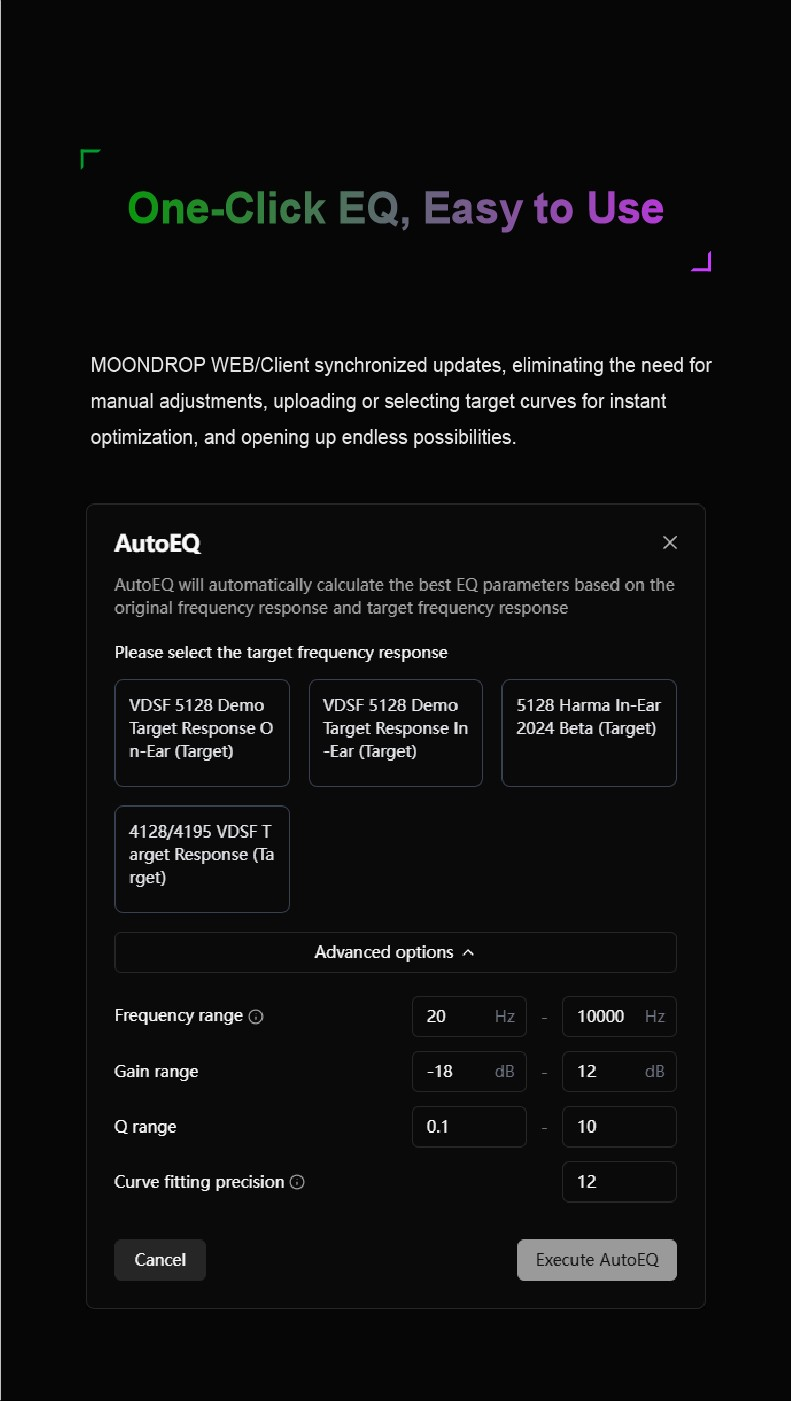

One-Click Presets and Tuning Sharing Platform

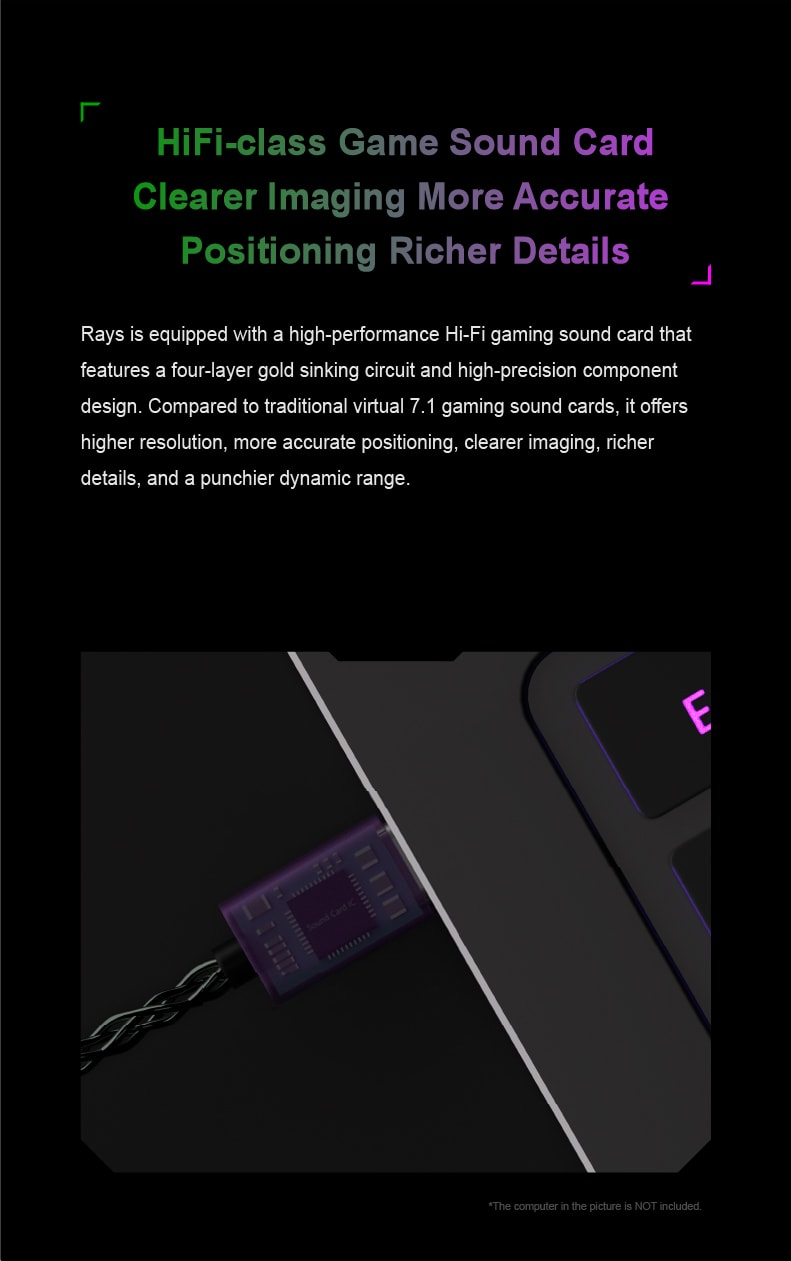

Built-In HiFi DSP Sound Card with High-Res Decoding
Real-Time AI Noise Cancellation with NPU

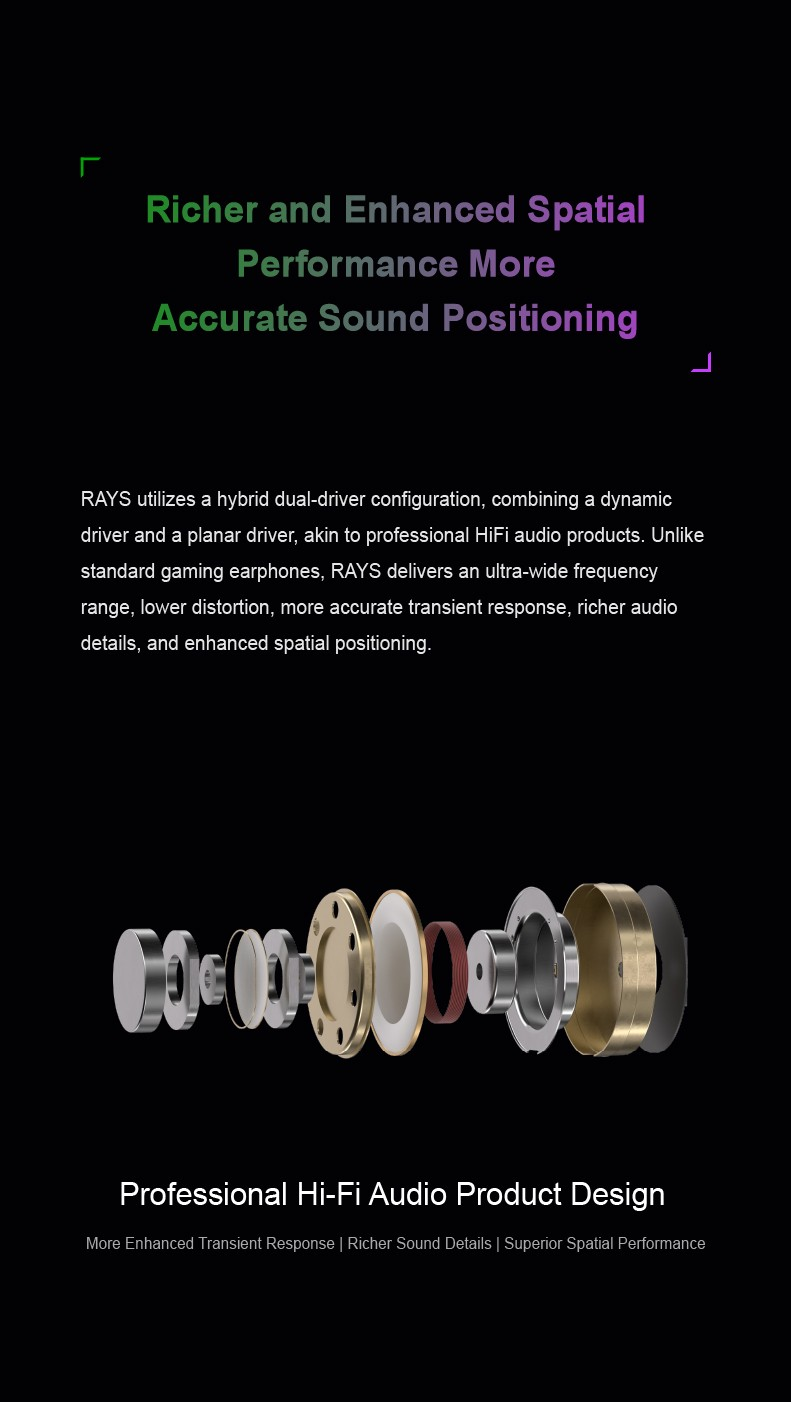

Hybrid Dynamic and Planar Drivers for Rich Detail

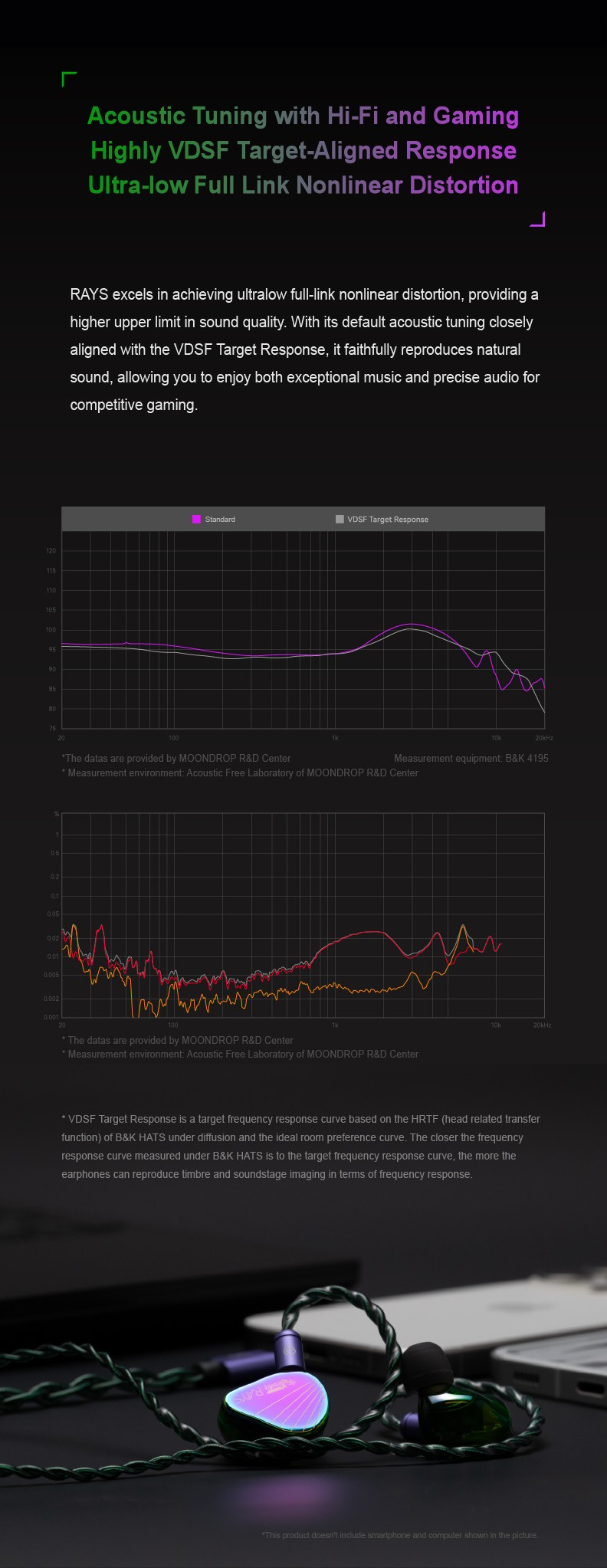

HiFi-Level Tuning with VDSF Target Response

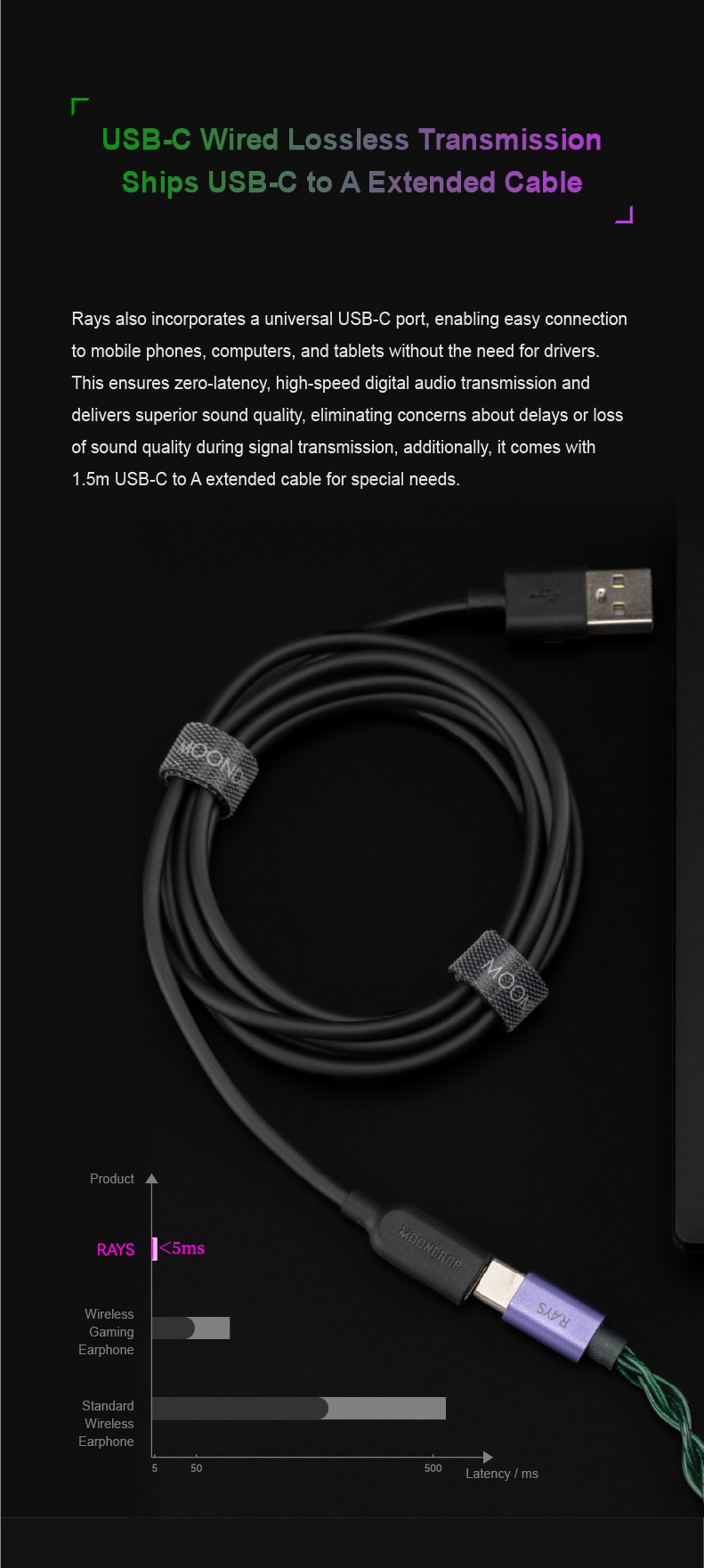

USB-C Digital Connection for Zero-Latency Audio

Technical Details
Model: RAYS
Type: USB-C DSP Pro Gaming IEM with AI Mic Noise Cancellation
Drivers: 10mm Sapphire-Plated Dynamic Driver + 6mm Annular Planar Magnetic Driver
Impedance: 30Ω ±15% @ 1kHz
Sensitivity: 120dB/Vrms @ 1kHz
Frequency Response: 7Hz – 39kHz
Effective Frequency Range: 20Hz – 20kHz (IEC60318-4, -3dB)
THD: ≤0.05% @ 1kHz
Connector: 0.78mm 2-pin
Plug Type: USB-C
Inside the Box:
1 x MOONDROP RAYS
User Manual
