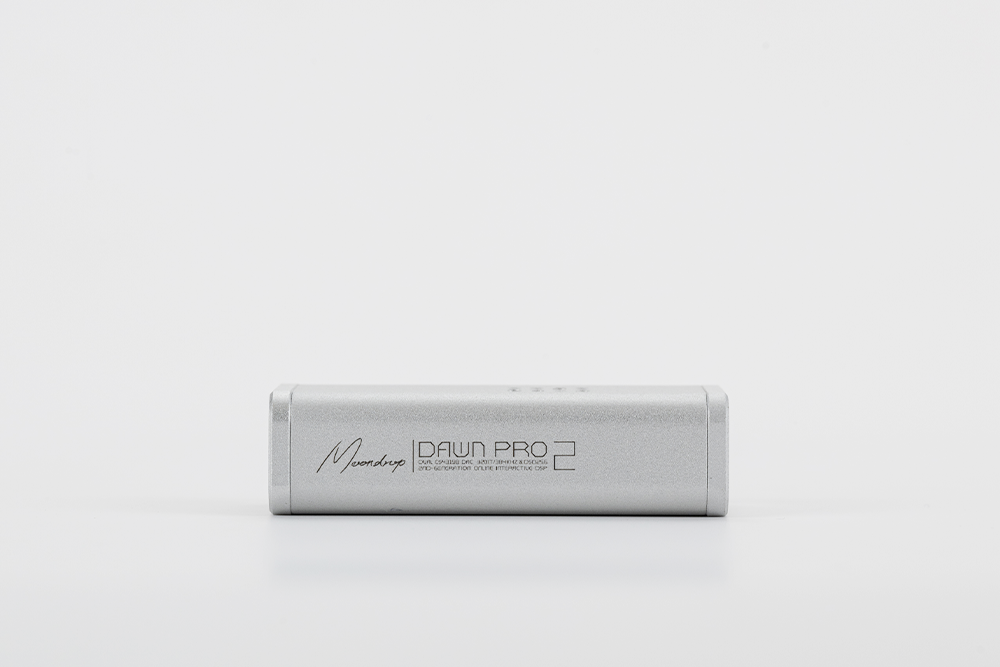

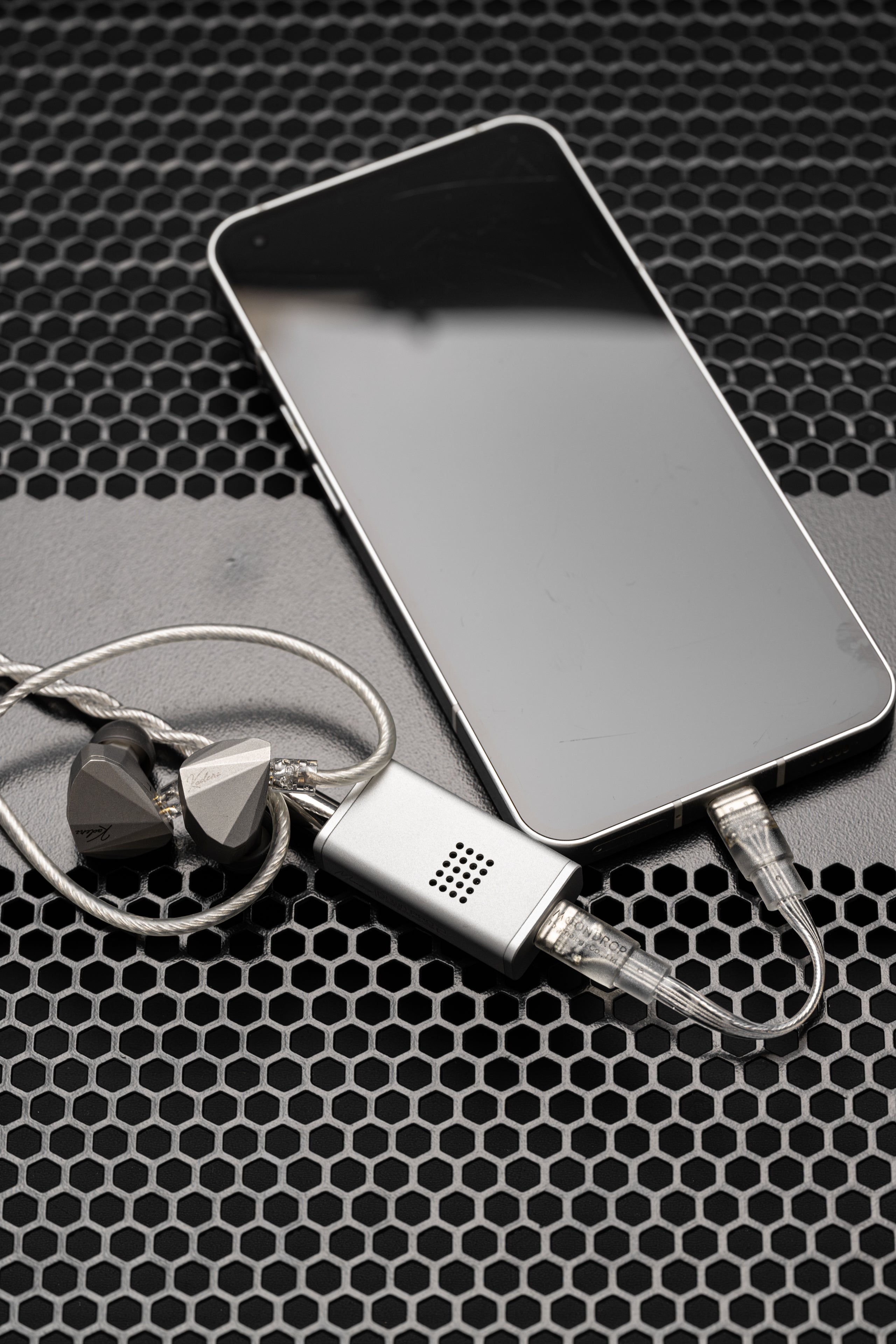

Moondrop DAWN PRO - Dual CS43131 DAC 32bit / 384kHz DSD256 Portable USB DAC Amplifier

> Up to 32bit / 384kHz PCM Decoding
> DSD256 Native Decoding
> Dual CS43131 Flagship DAC Chipset
> Three Independent Power Chips
> Up to 131dB Dynamic Range / Ultra-low Background Noise
> Distortion as low as 0.0001% / SNR exceeds 116dB
> 4Vrms / 120mW Large Thrust Balanced Output

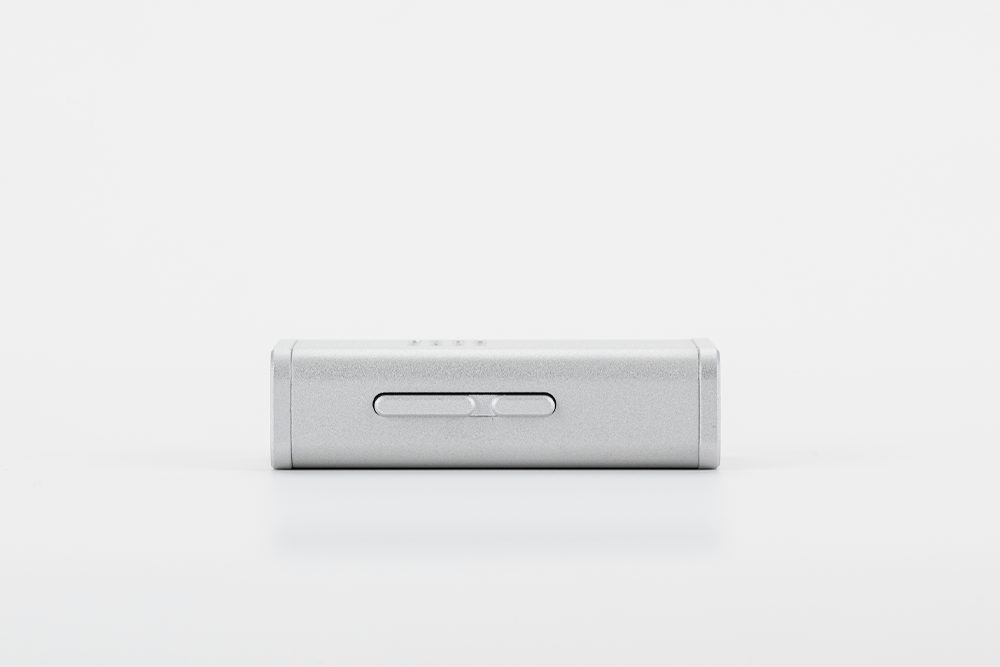

> 100-level Smooth Volume Control

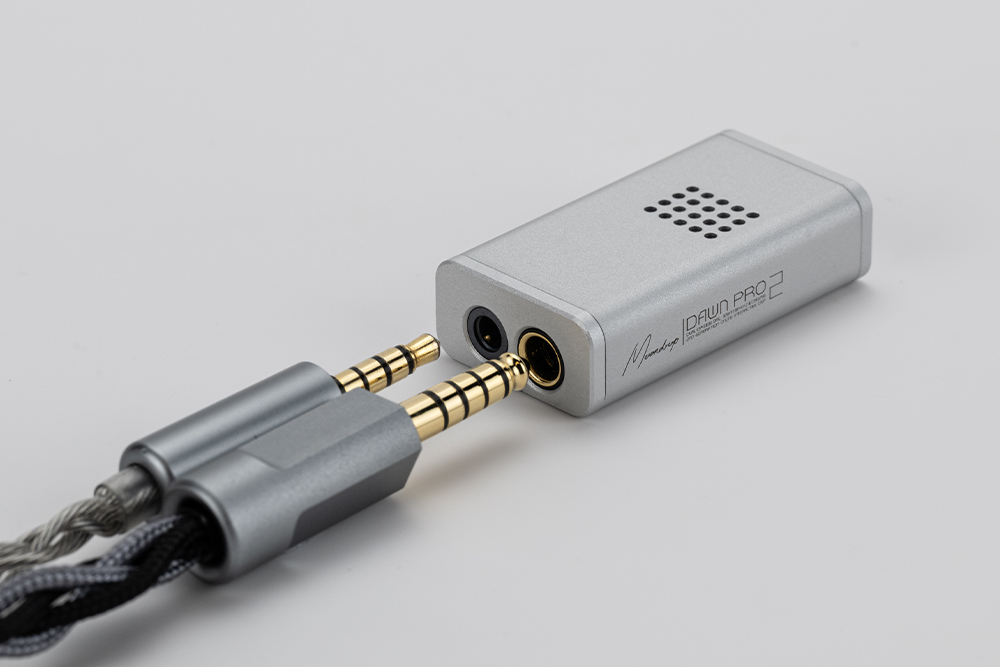

> 3.5mm Single-ended / 4.4mm Balanced

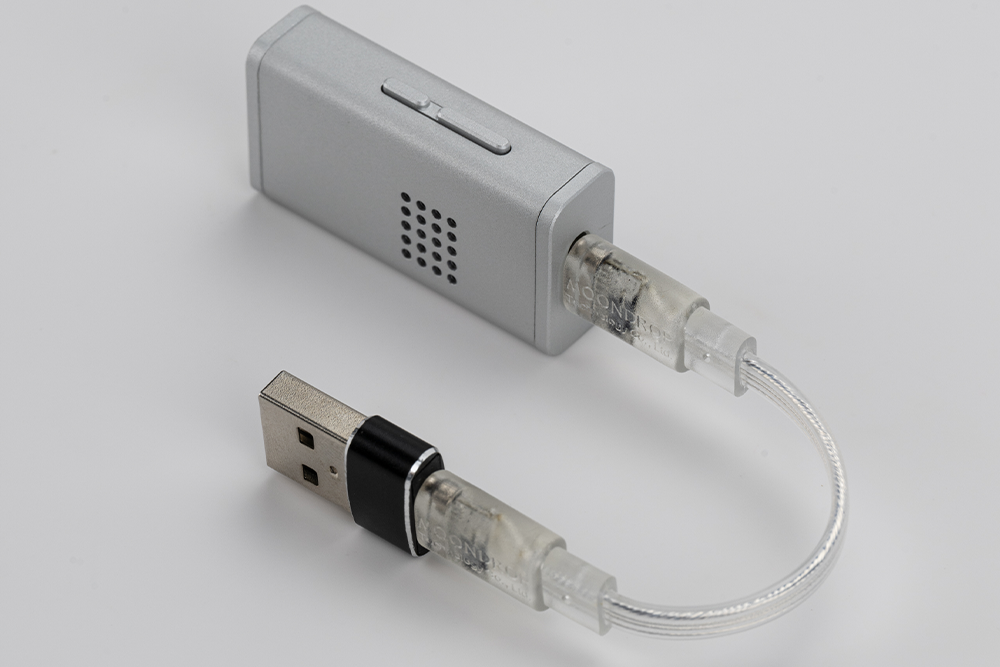

> Interchangeable Type-C Port

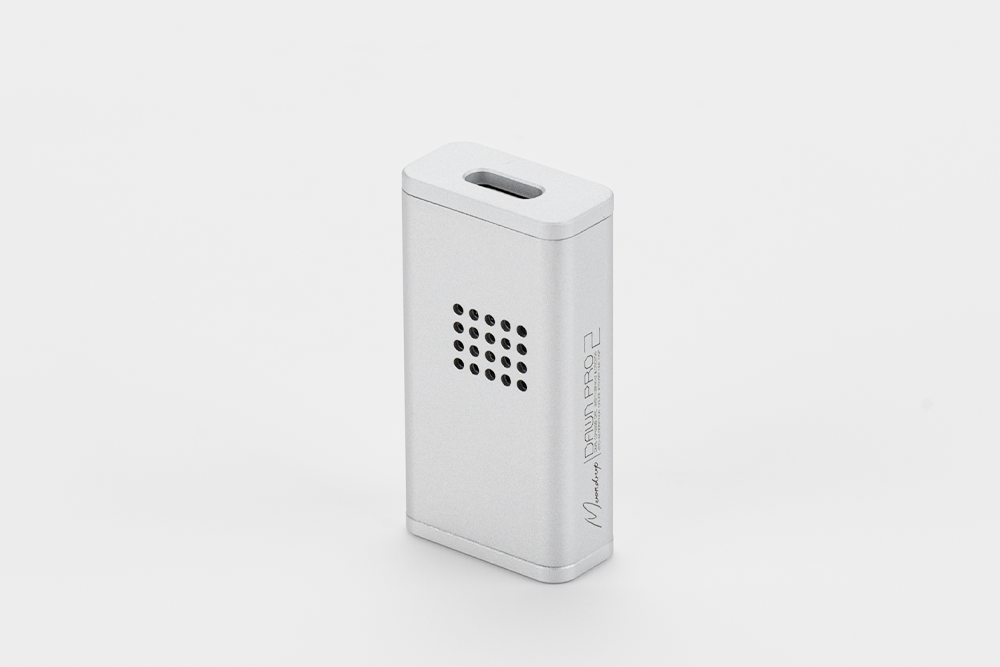

> Aluminium Alloy Housing Diversion & Heat-dissipation Design

DAWN PRO adopts dual flagship decoding amp chips CS43131 from Cirrus Logic and uses HiFi-class USB digital interface chip,
dual independent crystal oscillators and three independent power supply chips for supplying each IC separately,
forming a set of high-efficiency and high-performance HiFi audio circuit architecture,
which meets enough thrust, ultra-low distortion, ultra-low noise and rich details in audio experience with low power consumption.


Product name: DAWN PRO
Weight: 13g
Size: 42mm x 22.45mm x 12.39mm
Earphone Jack: 3.5mm Single-ended / 4.4mm Balanced Jack
Frequency Range: 5Hz-82kHz (+/-1dB)
Noise Floor (4.4mm): 1.3μV (AES17 20kHz)
Noise Floor (3.5mm): 1.5μV (AES17 20kHz)
SNR (4.4mm): 131dB (A-wt)
SNR (3.5mm): 123dB (A-wt)
Line Out: 4.4mm @ 4Vrms, 3.5mmm @ 2Vrms
Dynamic Range: 4.4mm:132dB (A-wt)
THD+N Ratio: 0.00014% (AES17 20kHz, non-loaded)
