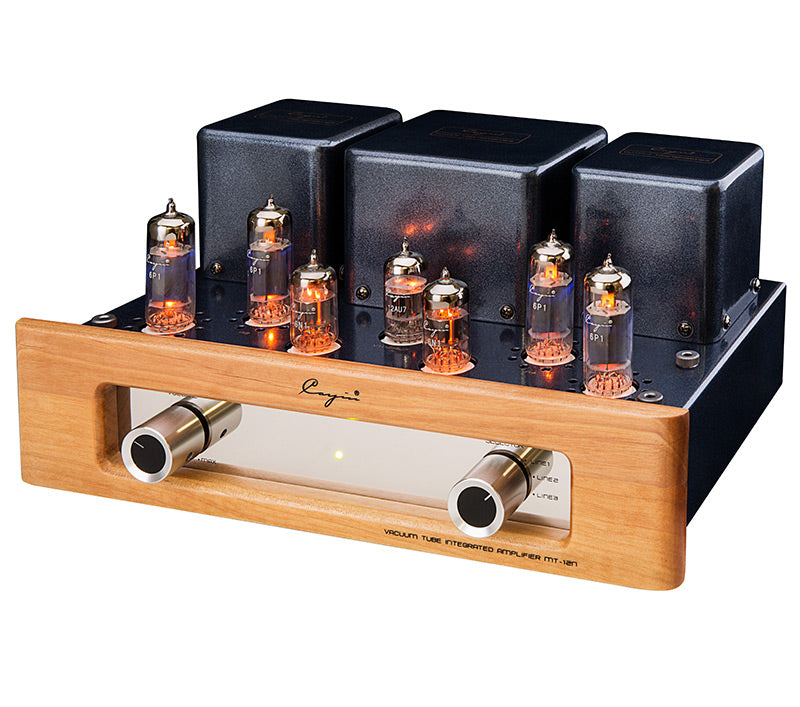

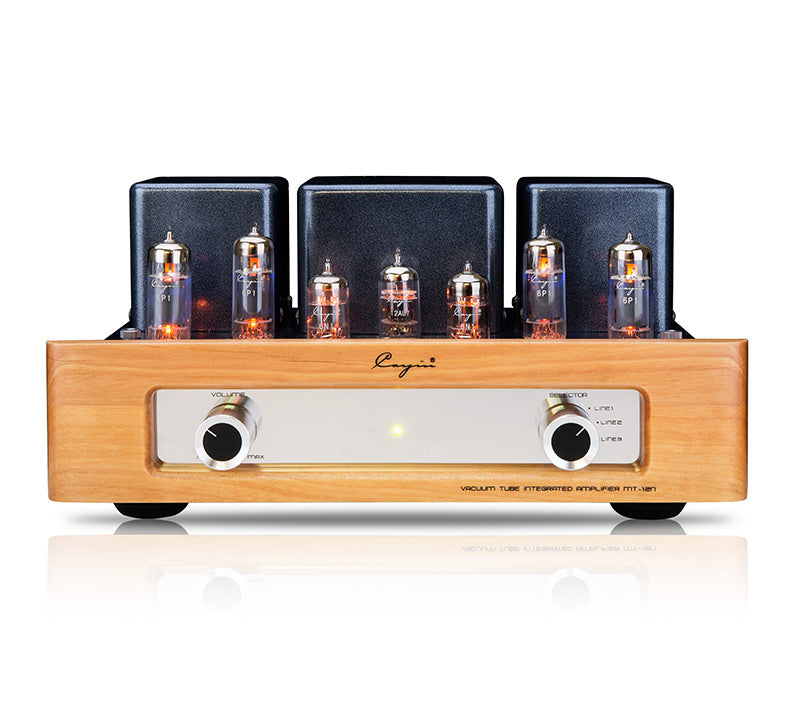

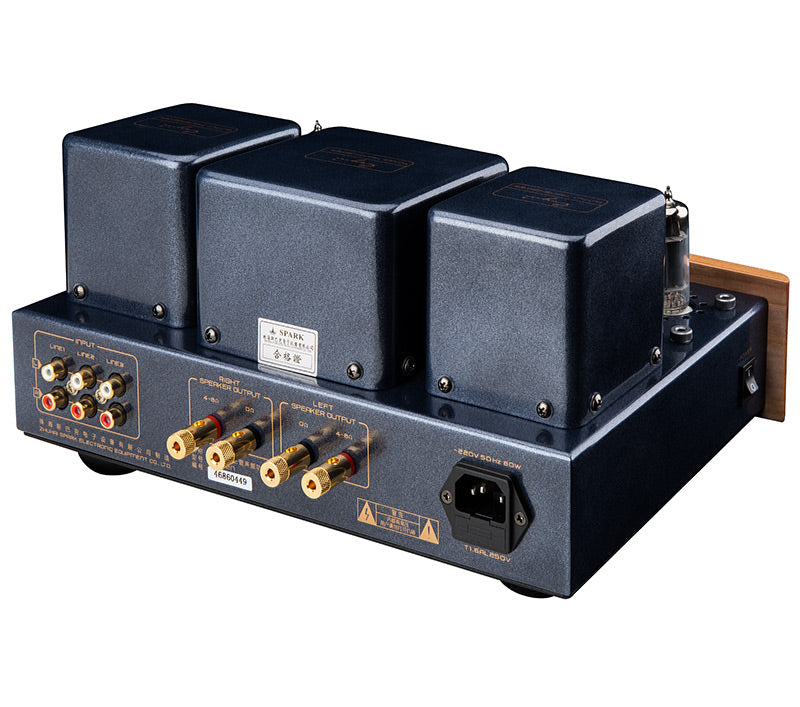

Cayin MT-12N (230V version) Vacuum Tube Valve Integrated Amplifier for Passive Speakers

- Tube amplifier hand-made construction with the finest point-to-point wiring.
- Two EI output transformers with wide bandwidth are applied.
- Specially designed toroid transformer for power supply.
- One piece of 12AU7 and two pieces of 6N1 are used in the Preamplifier stage: 12AU7 for voltage amplification and 6N1 for drive amplification.
- Four EL84EH tubes are used for AB1 push-pull amplification.

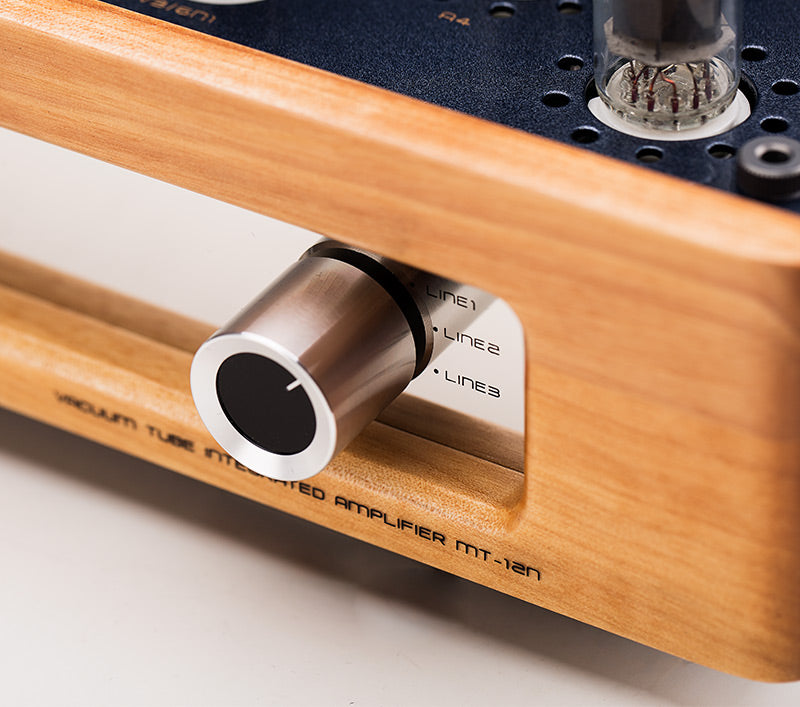

- High-quality Japanese ALPS potentiometer.
- Equipped with easily-installed tube cover for protection.

SPECS

Power Output: 10W+10W
Frequency Response: 9Hz~45kHz (-3dB)
THD: 0.5% (1kHz)
S/N Ratio: 87dB
Input Sensitivity: 230mV
Input Impedance: 100kΩ
Output Impedance: 4Ω～8Ω
Max Power Consumption: 80W
Tube: 12AU7(x1)、6N1(x2)、6P1(x4)
Dimensions: 330×245×160mm³
Net Weight: 8.3kg
Working Condition: Temperature 0°C~40°C, Moisture 20%~80%
Storage Condition: Temperature -20°C~70°C, Moisture 20%~90%
