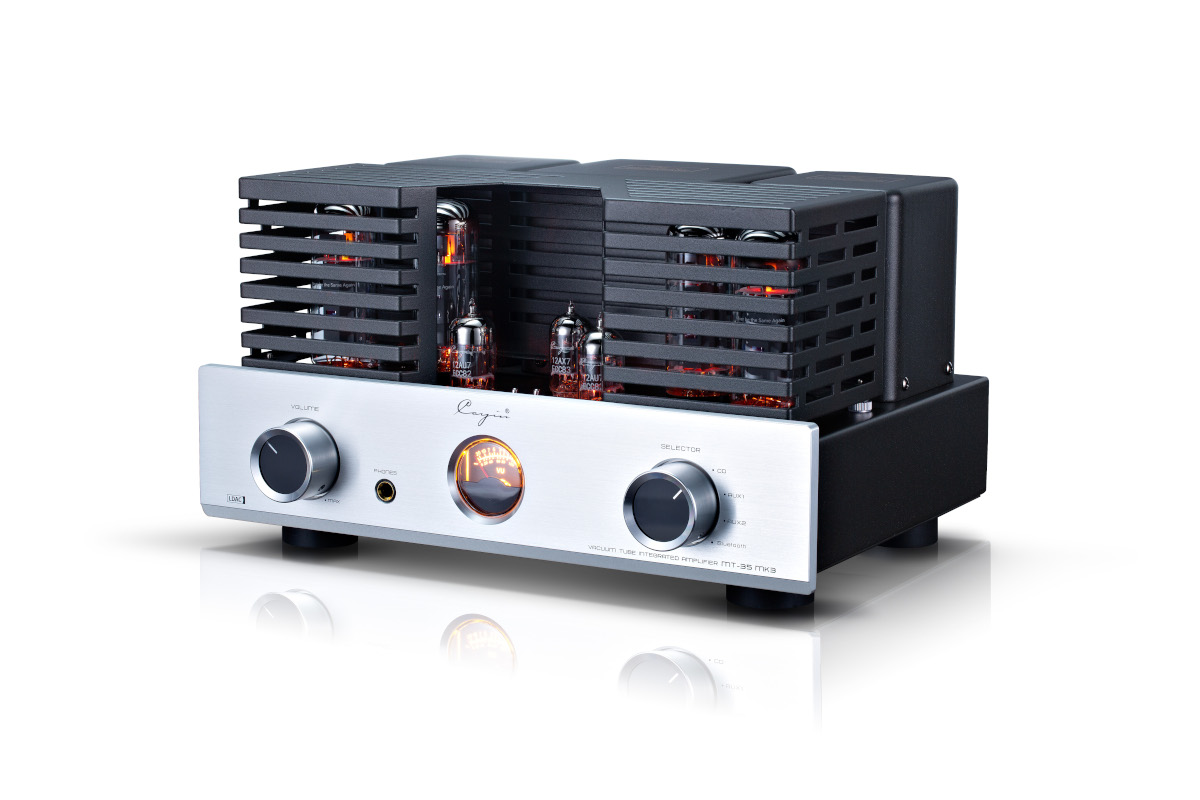

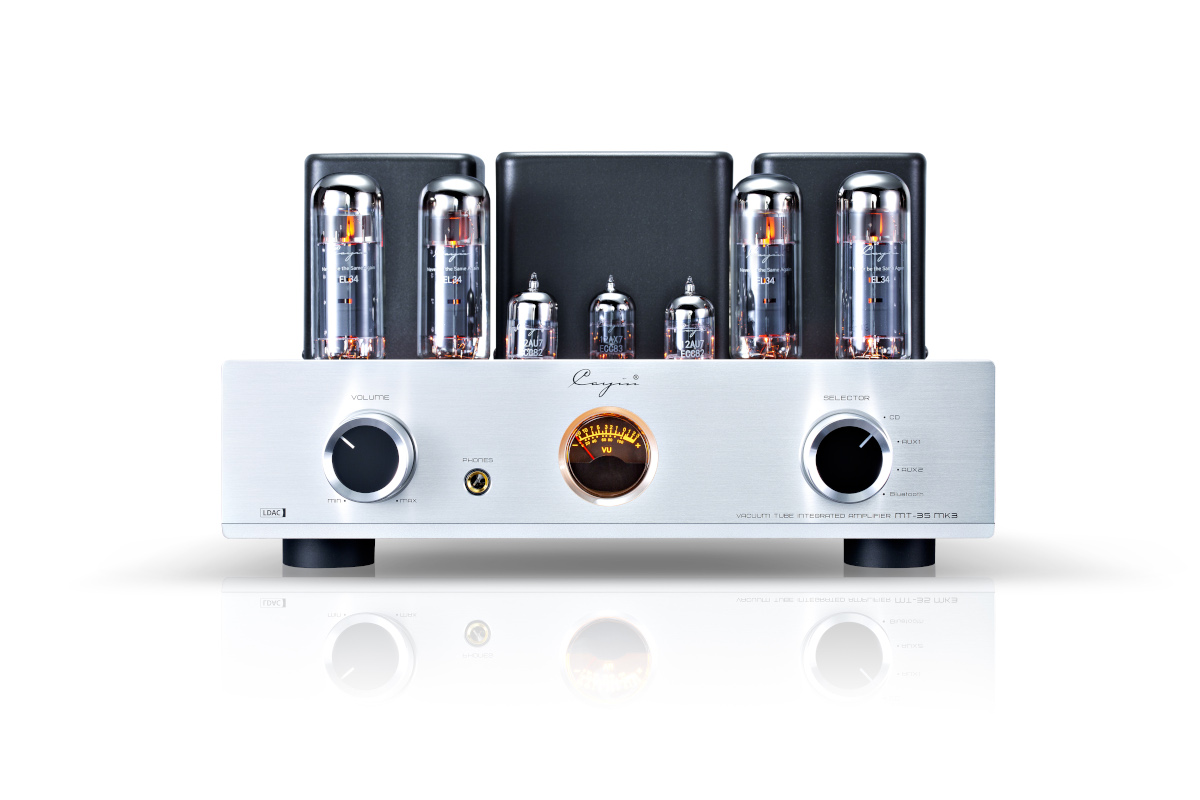

Cayin MT-35 MK3 Bluetooth Tube Amplifier

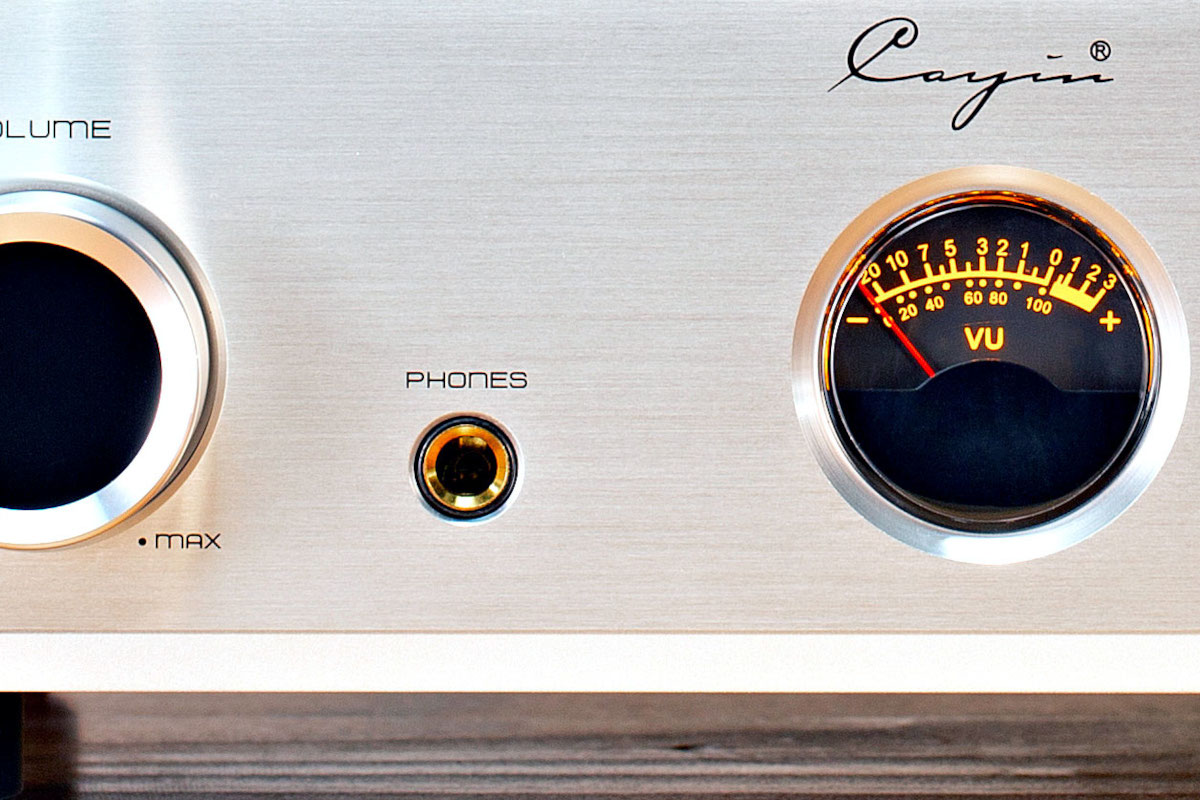

Illuminated VU meter on the front panel. The bias voltage can be individually adjusted for each tube using a trimmer, while the central, illuminated dial serves as a simple indicator for optimal settings.

2 x 36 watts per channel and 4 inputs
The Cayin MT-35 MK3 combines the finest tube sounds with everyday performance in a uniquely affordable way: In ultra-linear mode, its four output tubes deliver an astonishing two times 36 watts of power. The amplification itself is carried out in a particularly effective Class A/B push-pull mode for powerful dynamics from the four EL34 tubes.

Four Inputs for a Modern Tube System
Affordable price, classic tube circuitry, and versatile application options go hand in hand with the Cayin MT-35 Mk3. Three RCA inputs are available for analog sources.

Circuitry, Tube Configuration, and Compatibility

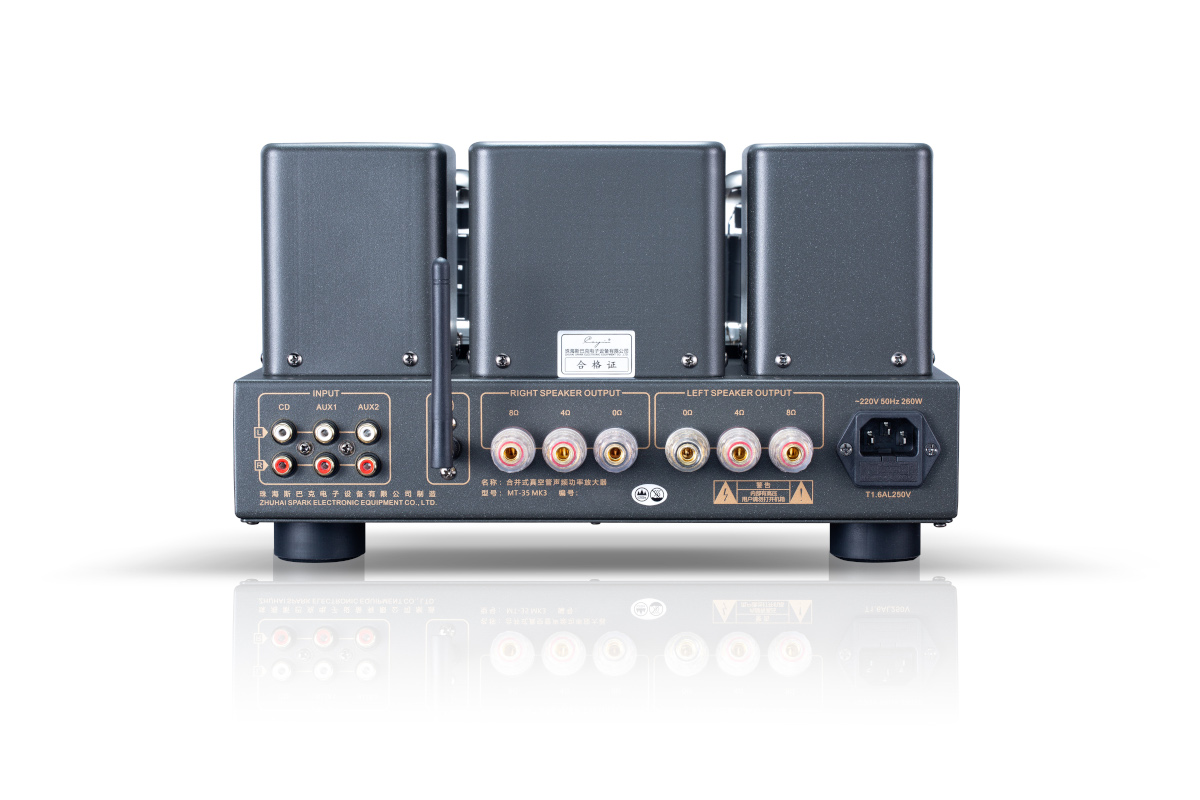

The amplifier circuitry of the MT-35 Mk3 is a Cayin in-house development and hand-assembled in a point-to-point wiring configuration. Equipped with four EL34 power tubes, it generates sufficient power for many commercially available loudspeakers. Different taps on the specially developed, wide-band output transformer with dedicated 4- or 8-ohm terminals allow for optimal adaptation to either high- or low-impedance speakers.

The power tubes can be operated either in the more powerful ultralinear/pentode mode or in triode mode. If the latter is activated via the switch on the top panel, the effective power is halved to two times 18 watts, but the sound character is more refined for purists, more typical of triodes.

The bias voltage for each tube can be individually optimized with a trimmer; the central dial serves as a simple indicator for optimal settings.

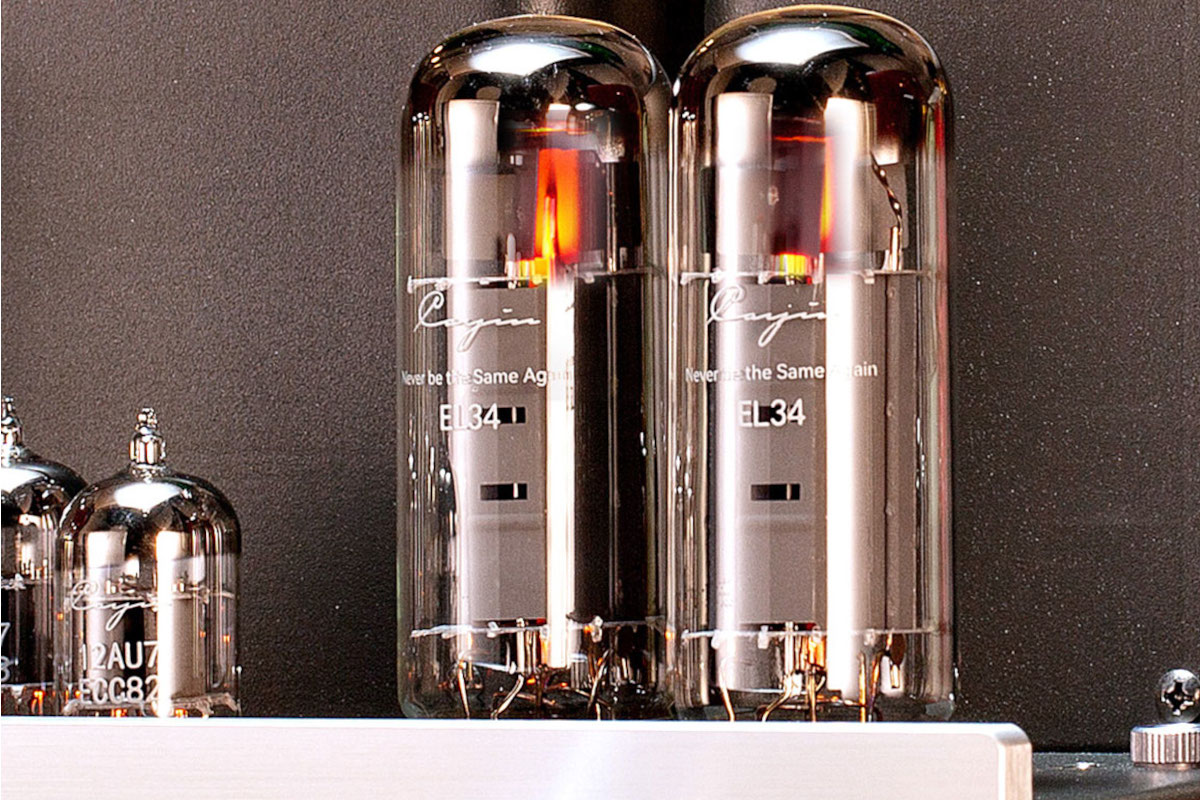

The preamp uses classic 12AX7/ECC83 and 12AU7/ECC82 tubes. Those who want to customize the sound of the Cayin MT-35 Mk3 can replace the EL34 power tubes with compatible models such as 6CA7, 6L6, 5881, or similar.

Specifications
Frequency range: 8 Hz to 60 kHz (-3 dB)
Output power (RMS) at 4 and 8 ohms: 36 W + 36 W ultralinear, 18 W + 18 W triode.
Total Harmonic Distortion (THD): 0.25% (1 kHz)
Signal-to-Noise Ratio: 93 dB
Input Impedance: 100 kOhm
Input Sensitivity: 300 mV
Circuit: Class A/B
Tubes: 1x 12AX7, 2x 12AU7, 4x EL34
Features: Integrated Bias Meter
Headphone Output: 16 Ω~300 Ω
Inputs: 3 x Line, Bluetooth
Bluetooth:
Bluetooth Version: V5.1
Processor: QCC5125
Range: 10 meters
Bluetooth Standards: LDAC, aptX HD, aptX LL, aptX, AAC, MP3, SBC
DAC Chipset: ES9018K2M SABRE32
Circuit: Class A/B
Case Color: Anthracite Metallic
Front panel: Silver/black
Speaker impedance taps: 4 ohms, 8 ohms
Maximum power consumption: 260 VA
Mains voltage: 230 V AC/50 Hz
Dimensions (W x D x H): 326 mm x 278 mm x 184 mm
Weight: 13.5 kg
