The flagship of Cayin's tube D/A converters with its high-quality dual ESS Saber ES9038Pro natively support up to 32bit/768kHz as well as DSD512. There are six different digital inputs provided: USB audio, AES/EBU, BNC, RCA, Optical and I2S via mini-HDMI.

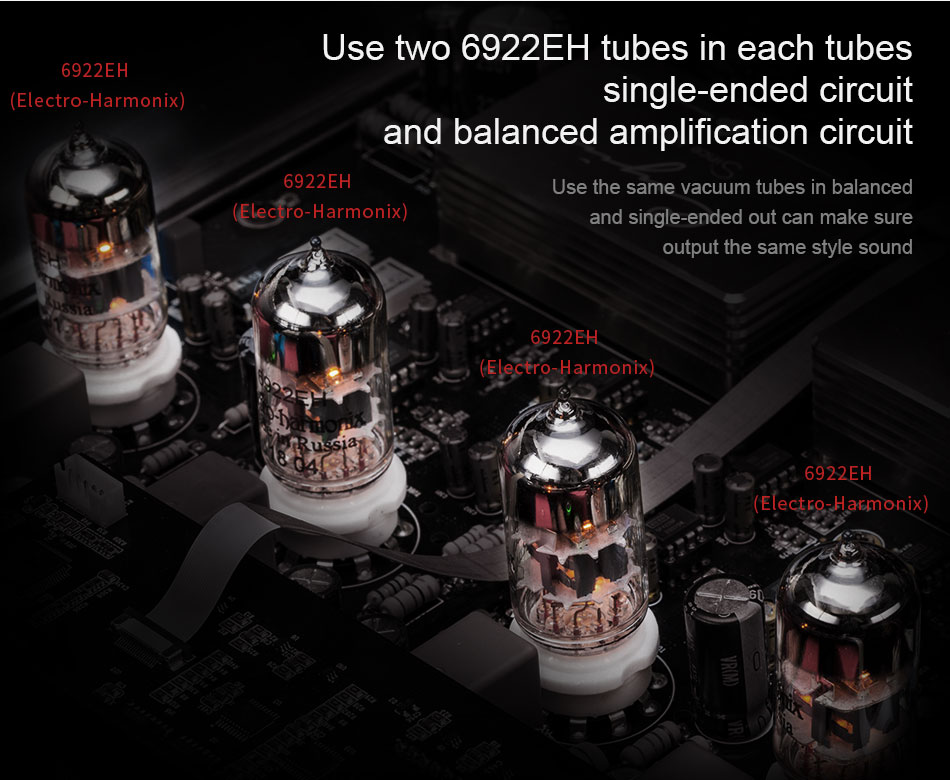

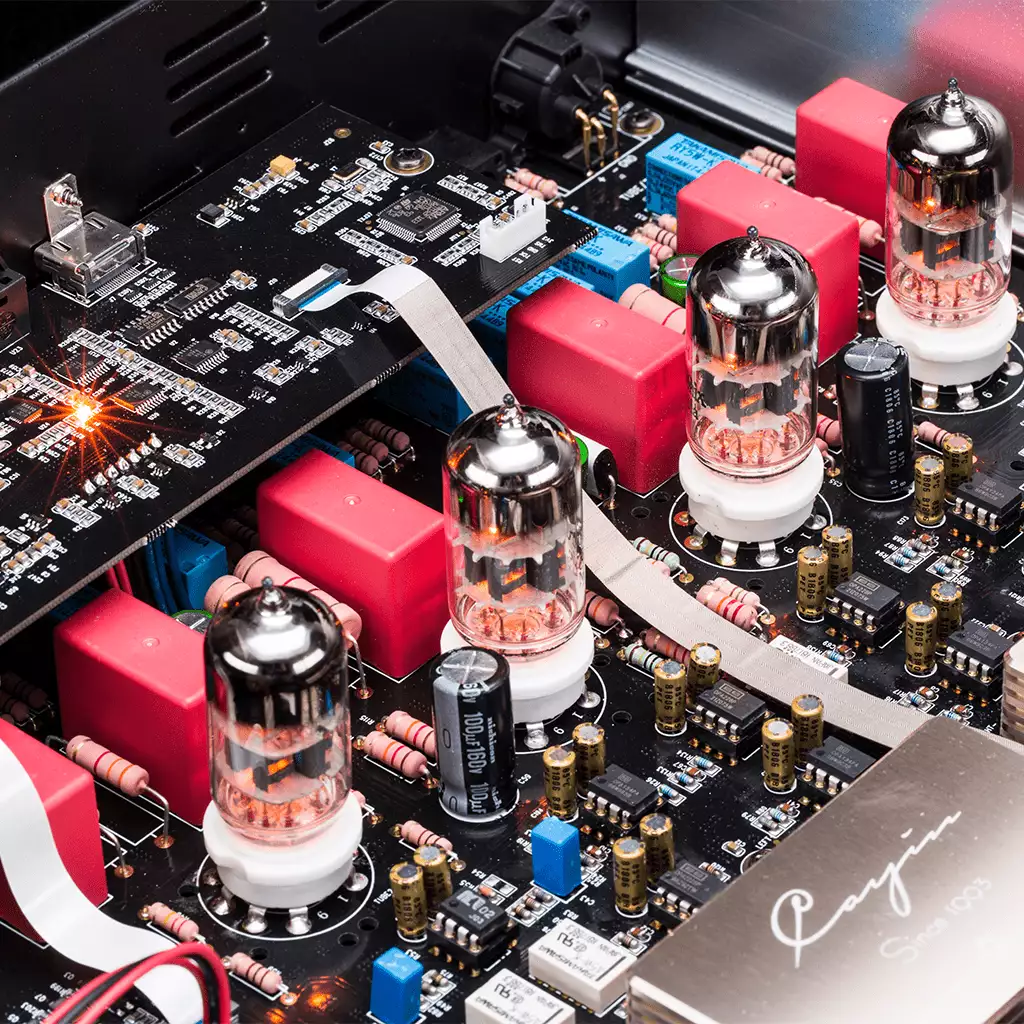

Vacuum tubes output for both pre-/line out, with four 6922EH for single ended and balanced outputs. Transistor pre-/line outputs are equipped with OPA228P(single ended) and two Muses02(balanced) for the independent amplification circuit.
A high-quality all-metal remote control and the smart user interface with 3.95-inch AMOLED display are available for easy operation.
DAC CHIPSET: 2 x ESS Sabre ES9038PRO
DISPLAY: AMOLED 3.95-inch
INPUT: USB Audio, I2S(Mini HDMI), AES/EBU*, Coaxial (BNC)*, COAXIAL (RCA)*, OPTICAL
OUTPUT: RCA and XLR
FREQUENCY RESPONSE: 20Hz - 50kHz(RCA)/20Hz - 35kHz(XLR)
SOLID STATE OUTPUTS
LINE OUT LEVEL: 2.3V RMS(RCA)/4.6V RMS(XLR)
PRE OUT LEVEL: 8.8V RMS(RCA)/17V RMS(XLR)
THD+N: ≤0.0008% (20 - 20kHz, A-weighting)
S/N RATIO: ≥115dB (RCA, 20 - 20kHz,A-weighted), XLR ≥119dB (20~20kHz,A-weighted)
VACCUM TUBE OUTPUTS
LINE OUT LEVEL: 2.2V RMS(RCA)/4.2V RMS(XLR)
PRE OUT LEVEL: 8V RMS(RCA)/11.5V RMS(XLR)
THD+N: ≤1.8% (20 - 20kHz, A-weighting)
S/N RATIO: ≥99dB (RCA, 20 - 20kHz,A-weighted), XLR ≥119dB (20~20kHz,A-weighted)
DIMENSIONS: 440mm x 392mm x 126mm
*Coaxial inputs support up to maximum 384kHz with standard 75ohm cable
